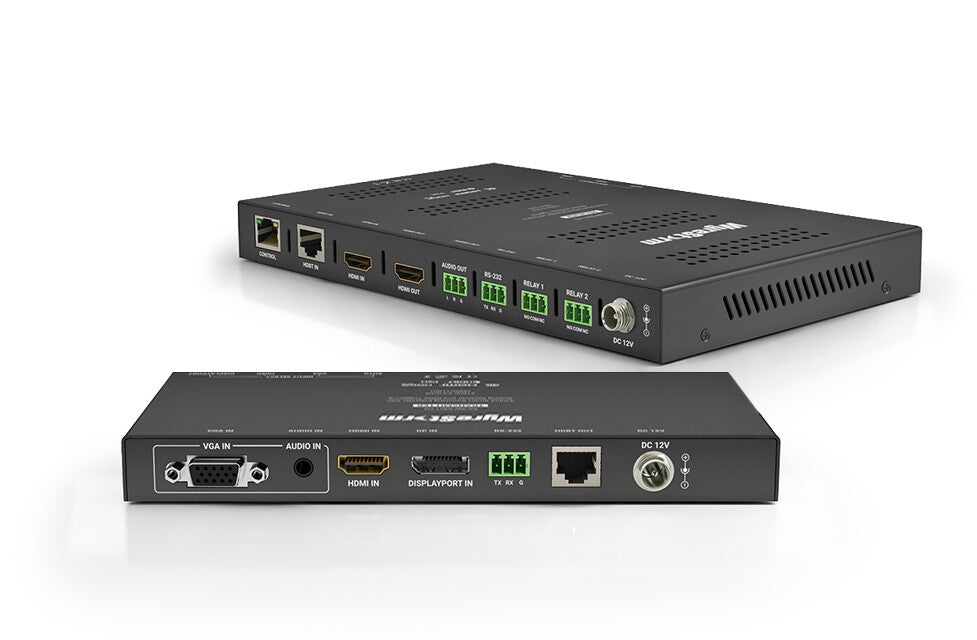

WyreStorm EX-SW-0301-H2 AV extender AV transmitter & receiver Black

Hitting the sweet-spot between the 2-input and 4-input presentation switcher & extender products, the EX-SW-0301-H2 is a powerful HDBaseT extender with support for VGA, HDMI & DP inputs at the transmitter but also a 4th source local to the scaling receiver. Condition-based relays and support for HDCP 2.2 wrap up this formidable package.

3-INPUT SWITCHING EXTENDER
The newest addition to the switching extender line-up; the EX-SW-0301-H2 brings features of the H2 family into the huddle & meeting space products. Supporting HDCP 2.2 and 4K/60 content, this extender accepts HDMI and DP sources with a VGA + audio input for legacy devices.

SECONDARY RECEIVER INPUT
Logical relays aside, the EX-SW-0301-H2 has another trick up its sleeve. Upon the meeting room being in an idle state, the receiver can switch to its secondary input (HDMI) which can be used for anything from a signage player to a satellite receiver, keeping the screen active and displaying content. This input can also be triggered manually at any time should a Chromecast or AppleTV be fitted for screen mirroring.

TWO CONDITION-BASED RELAYS BUILT INTO RECEIVER
With autonomy in mind, this “meeting-room-in-a-box” can be configured to automatically trigger motorized devices within the room. The relays will open or close depending on the status of the transmitter, meaning that upon a source connection being made, the meeting room will come to life with projector screens appearing and window blinds closing.

HDBASET TRANSMISSION WITH SCALING RECEIVER
Rock-solid ClassB HDBaseT™ transmission ensures signal integrity from transmitter to receiver, with PoH being supplied in the opposite direction meaning the transmitter can be sited without concern of a power source. The receiver automatically scales incoming content to the capability of the connected screen, ensuring no signal drop-outs to interrupt the flow.
