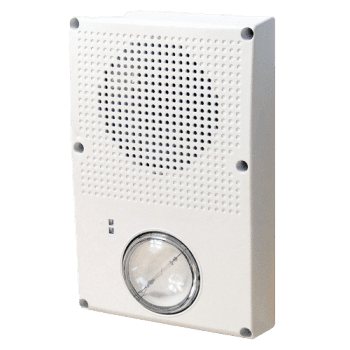

This WG4WN-HVMHC weatherproof outdoor horn/strobe from KIDDE COMMERCIAL features a clear lens for increased visibility and a high output design for added safety. Pair it with the Model 449 electrical box for waterproof installations.

Genesis WG4 Series horns and horn-strobe appliances are among the most versatile emergency appliances of their kind. Rated for indoor or outdoor use, they are suitable for a wide range of wet and harsh environments with a listed operating temperature range of as low as -40°F to as high as 151°F (-40 °C to 66 °C). Field-configurable light and sound output settings add to their on-site flexibility, while optional FIRE markings make them ideal for fire alarm applications. These appliances are suitable for indoor and outdoor applications, and are ideal for challenging conditions such as parking garages and process areas. They are available for mounting on the ceiling or the wall, and thanks to an ingenious optional full backplane sealing gasket, can be installed to recessed (in-the-pour/block) electrical boxes. WG4 notification appliances also mount to suitable surface boxes. Optional color-matched trim skirts provide a clean, finished appearance. All appliance wiring is accomplished room-side for easy installation. WG4 Series appliances feature an efficient and powerful piezo sounder. The multi-candela strobes are available with clear lenses in two output categories – standard and high-output. They are precision-timed to meet UL 1971 synchronization standards, and field-configurable for one of four candela intensities. Candela settings are viewable even after installation through an innovative sealed viewport display. With their exceptional performance, flexibility, and durability, Genesis WG4 Series horns and horn-strobe appliances are the ideal solution for a wide range of emergency notification applications.

Specifications:

Features:

• Outdoor and indoor rated
• Low-profile design
• Wall or ceiling mount
• Room-side wiring accepts 18 to 12 AWG (0.75 to 2.5 mm²)
• Wide operating temperature range
• Field-selectable speaker wattage, voltage, and strobe candela settings
• Field-configurable temporal strobe output option
• Clear and amber lenses available
• Fully-compatible with Genesis synchronization protocols
• Standard and high-output strobe intensities
• Speaker only and Speaker/Strobe appliance options
