Description

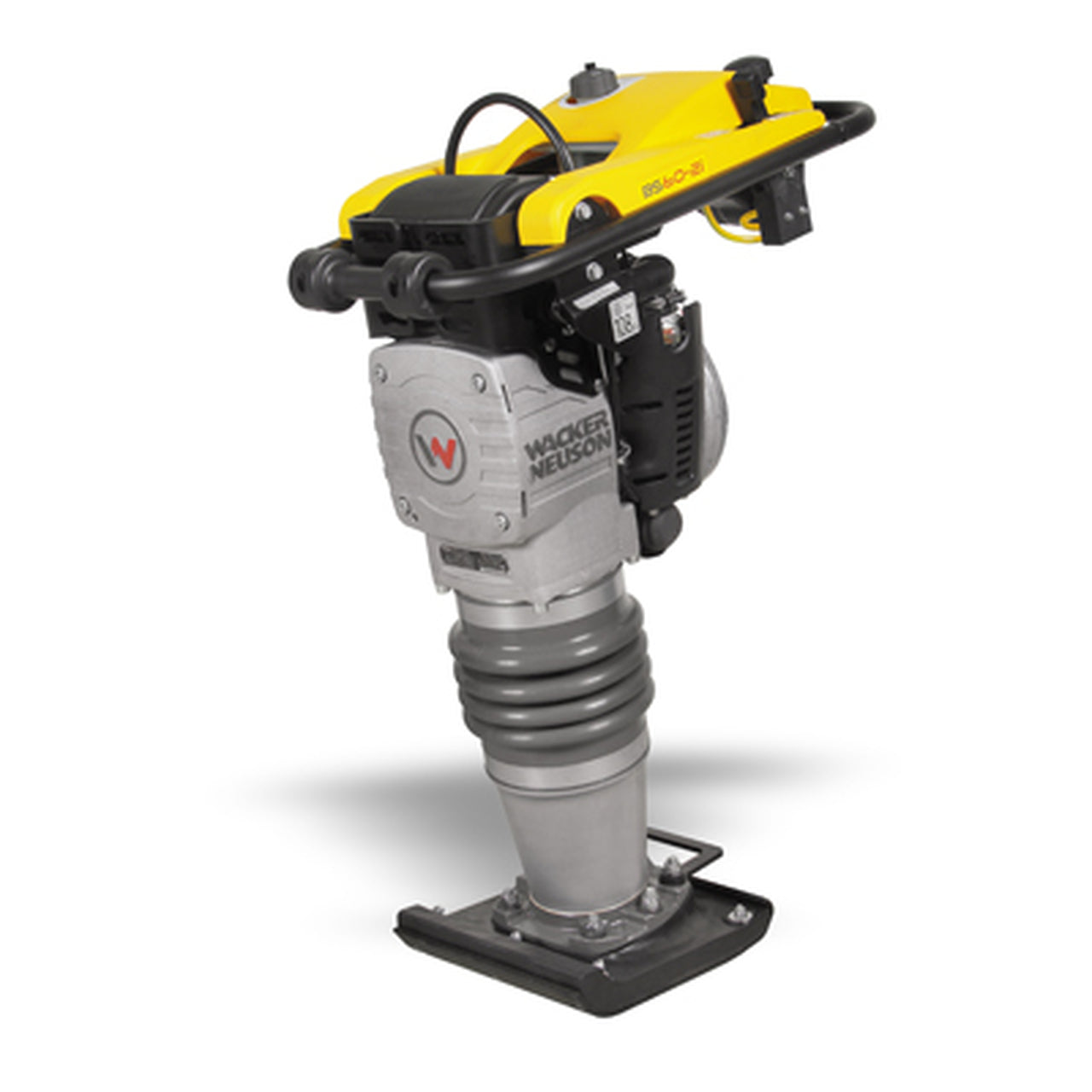

xThe patented Plus rammer series provides all the advantages of the classic two-stroke rammer, plus the convenience of a no-mix system. The two separate tanks for fuel and two-cycle oil eliminate premixing, and automatically provides the correct mix for long, clean running times. The Plus series rammers are available in three weight classes and are ideal for compaction of cohesive and mixed soil in trenches and other confined areas. The low center of gravity provides high performance and stability during operation.
- Lean fuel-to-oil ratio and large oil tank allow for up to 120 hours of run time
- Optimized guide handle reduces hand-arm vibration and improves operator comfort
- Comfortable operation with auto-choke and only one lever for idling, starting and stopping
- Automatic shutdown after 10 minutes if left idling reduces emissions or when starting with an empty oil tank
- A unique four-stage air filtration provides a virtually dust-free engine for longer life and improved durability. The system includes a last chance filter that protects the engine during air filter maintenance
| OPERATING FLUIDS | Imperial | Metric |
| Lubrication intervall | 250 h | 250 h |
| Oil volume | 0,238 gal US | 0,900 l |
| Oil specification | SAE 10W-40 | SAE 10W-40 |
| Tank capacity | 0,8 gal US |
|
ENGINE |
Imperial | Metric | ||
| Fuel management | Carburettor / oil injection | Carburettor / oil injection | ||
| Engine operating mode | two-stroke | two-stroke | ||
| Operating Engine speed | 4.250 1/min | 4.250 1/min | ||
| Fuel consumption | 0,3 GPH US | 1,6 lb/h | 1,00 L/hr | 0,73 kg/h |
| Idling speed | 2.000 1/min | 2.000 1/min | ||
| Battery Size BCI Group | Wacker Neuson | Wacker Neuson | ||
| Engine speed (max. torque) | 2004/26/EC | 2004/26/EC | ||
| Standard (Power max.) | 2,7 hp | 2,0 KW | ||
| Standard (Effective power) | ISO 3046-1 | ISO 3046-1 | ||
| Tank capacity | 0,8 gal US | 2,90 l | ||
| Nominal Engine speed | 4.400 1/min | 4.400 1/min | ||
| Electrode distance | 0,020 - 0,032 " | 0,5 - 0,8 mm | ||
| Effective power | 2,7 hp | 2,0 KW | ||
| Cooling | air cooling | air cooling | ||
| Exhaust-gas limit | China Stage 2 | China Stage 2 | ||
| Oil specification | ISO-L-EGC | ISO-L-EGC | ||
| Starter type | Recoil starter | Recoil starter | ||
| Operating power | 2,4 hp | 1,8 KW | ||
| Engine type | Gasoline engine | Gasoline engine | ||
| Cylinder | 1 | 1 | ||
| Engine Manufacturer | Wacker Neuson | Wacker Neuson | ||
| Standard (Operating power) | ISO 3046-1 | ISO 3046-1 | ||
| Cylinder capacity | 4,9 Inch3 | 80 cm3 | ||
| Fuel | Alkylate fuel/Oil mixture | Alkylate fuel/Oil mixture | ||
| Spark plug(s) | Champion RL86C | Champion RL86C | ||
| Fuel mix ratio | 1:100 | 1:100 | ||
| Oil volume incl. filter change | Recoil starter | Recoil starter |
|
MECHANICAL - OUTPUT DETAILS |
Imperial | Metric |
| Transmission | FKK | FKK |
| Power of impact | 4.496,2 lbf |
