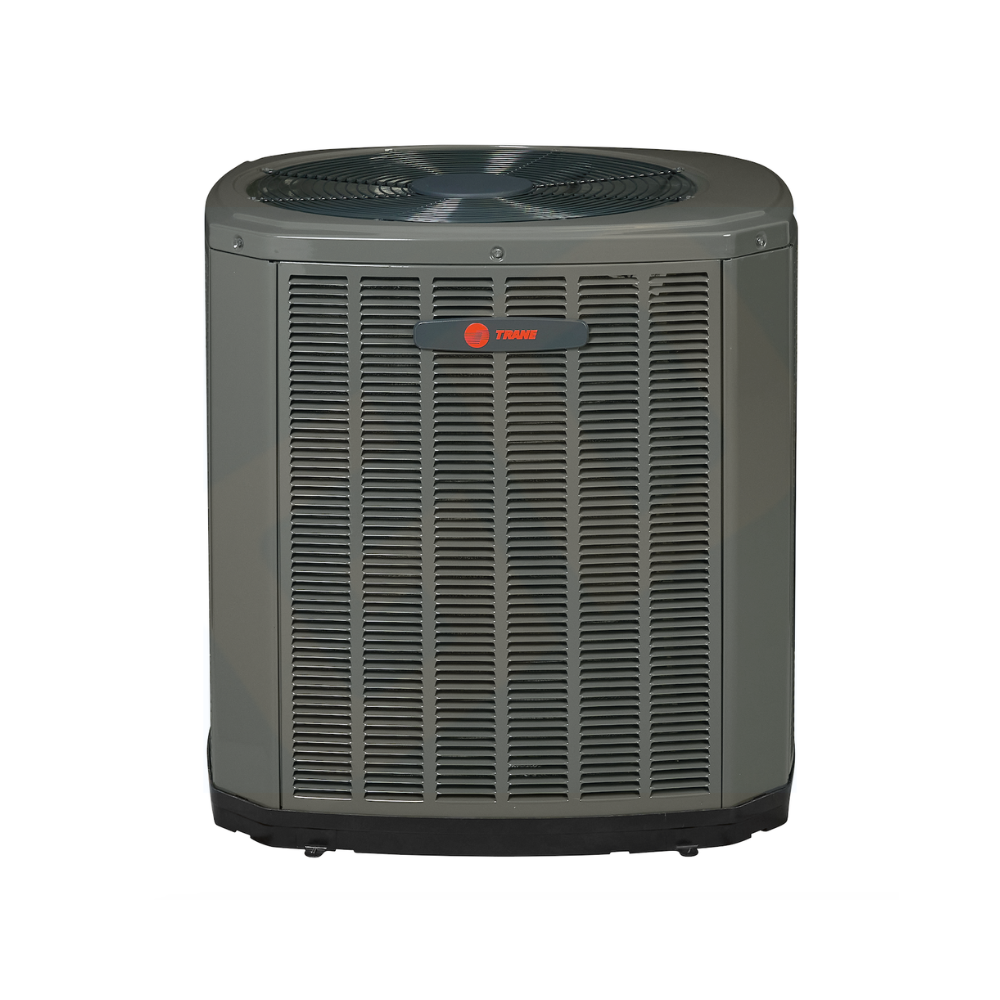

Trane 5TTR3036A1000A 3 Ton 36,000 BTU 13 SEER2 Split System Cooling Only Air Conditioner - R454B

Trane 5TTR3036A1000A – 3 Ton 13 SEER2 Single-Stage Split System Air Conditioner

Deliver dependable, energy-efficient cooling with the Trane 5TTR3036A1000A, a 3-ton single-stage split system air conditioner engineered for durable outdoor performance and reliable residential comfort. As part of Trane’s 5TTR30 series platform, this R-454B system combines a CLIMATUFF® scroll compressor, Spine Fin™ coil, and heavy-gauge galvanized steel cabinet construction for consistent cooling operation and long-term durability .

Single-Stage CLIMATUFF® Scroll Compressor Performance
The 5TTR3036A1000A features a single-stage CLIMATUFF® scroll compressor (1 – 1 configuration) operating on 208/230V, 1-phase, 60 Hz power . The compressor includes internal over-temperature and pressure protection along with a centrifugal oil pump to promote durability, low vibration, and reliable startup in residential applications .

3 Ton Cooling Capacity with 13 SEER2 Platform
Model nomenclature identifies this unit as a 3-ton system (036 = 36,000 BTU nominal capacity) . The unit is certified in accordance with AHRI Standard 210/240 and rated per AHRI Standard 270 for sound performance, ensuring tested efficiency and verified acoustic ratings .

Direct-Drive Outdoor Fan System
The outdoor fan utilizes a 23-inch propeller blade with a direct-drive single-speed motor (1/8 HP) operating at approximately 1100 RPM . Airflow is rated at 2,675 CFM at 0.0 in. w.g. under standard air, dry coil conditions, supporting efficient condenser heat rejection .

Spine Fin™ All-Aluminum Outdoor Coil
The outdoor coil incorporates Trane’s Spine Fin™ design with 1 row at 24 FPI and 16.25 sq. ft. of face area . This all-aluminum construction enhances heat transfer efficiency while minimizing airflow resistance, and louvered panels protect the coil on all four sides for added durability .

R-454B Refrigerant & Charging Specifications
The 5TTR3036A1000A utilizes R-454B refrigerant with an approximate factory charge of 2 lb, 15 oz . The unit includes 3/4" O.D. gas and 5/16" O.D. liquid connections and is designed for a 10°F subcooling charging specification to ensure proper system commissioning .

Quiet Operation with AHRI-Rated Sound Performance
The 5TTR3036A model is rated at 73 dB(A) A-weighted sound power level under AHRI Standard 270 test conditions, helping maintain controlled outdoor sound levels during cooling operation .

Durable Cabinet Construction for Outdoor Installation
The unit casing is constructed of heavy-gauge galvanized steel and finished with a weather-resistant powder paint coating. All panels are subjected to a 1,000-hour salt spray test to support long-term durability in demanding outdoor environments .

Operating Range & Low Ambient Cooling Options
As manufactured, the system provides cooling capacity down to 55°F outdoor ambient. The addition of an evaporator defrost control permits operation to 40°F, and with a TXV, low ambient cooling can extend to 30°F. The optional BAYLOAM103 low ambient kit permits cooling operation down to 20°F .

Engineered for Reliable Residential Cooling
Ideal for mid-sized homes and higher residential cooling loads, the Trane 5TTR3036A1000A delivers 13 SEER2 single-stage performance, Spine Fin™ coil efficiency, and durable cabinet construction in a robust 3-ton outdoor air conditioning platform built for consistent comfort and dependable long-term reliability .
