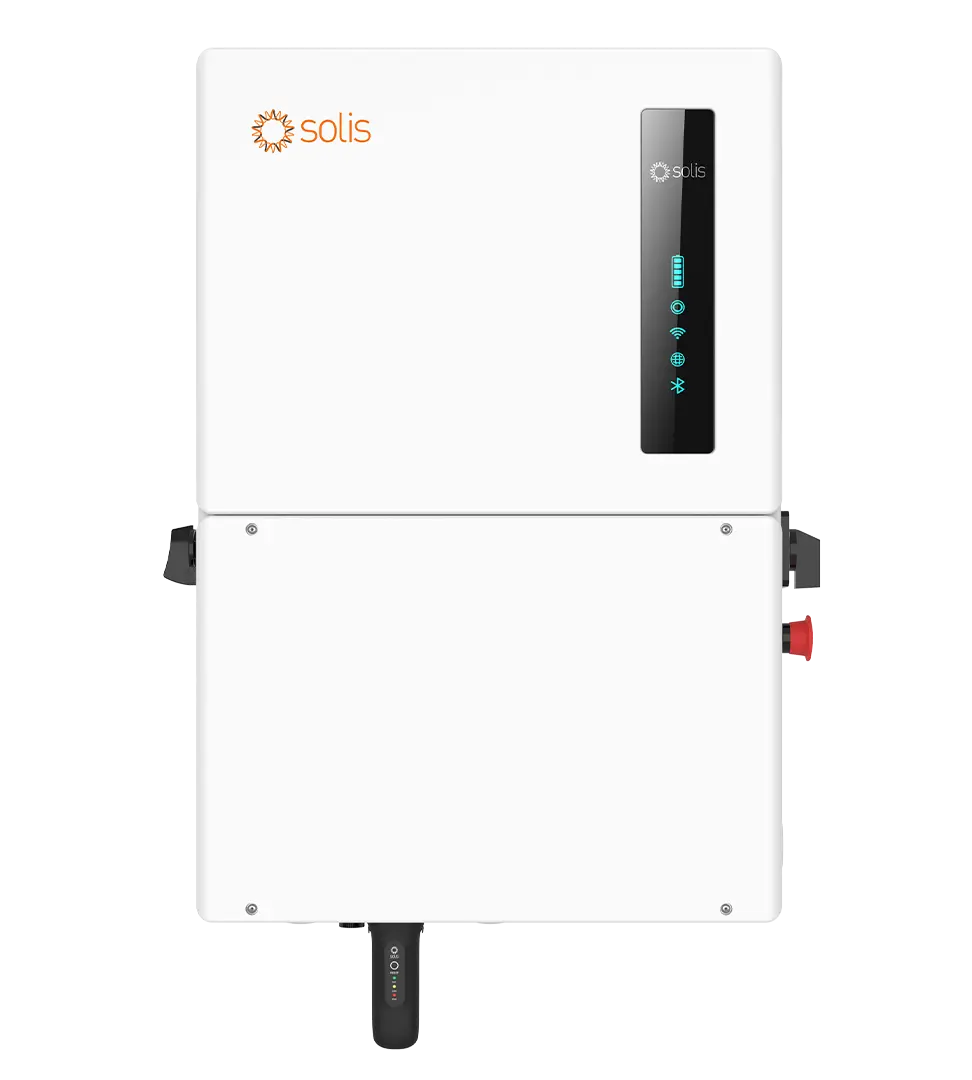

Solis S6 3.8kW Single Phase High Voltage Energy Storage Hybrid Inverter | S6-EH1P3.8K-H-US | With Tigo/APS Transmitter Integrated | 2 MPPT | UL1741 UL9540 | 10-Year warranty

The S6 (Series 6) hybrid energy storage string inverter is the latest in hybrid inverter technology, versatile and flexible for the growing solar storage marketplace. This easily scalable hybrid inverter can be DC-coupled to a variety of batteries post-installation as well as can be paralleled to add capacity. The S6 hybrid is a grid-forming inverter that supports the latest high-powered PV modules with 16A DC inputs at each MPPT. This product line is also certified PVRSS and UL3741 compliant when utilized with proper racking and array-level shutdown devices, meaning that you can realize cost and time savings by supporting simpler installs. Safeguard your power, while ensuring the ability to easily grow your solution and preserve your investment.

Product Overview

Key Features:

• Up to 2 MPPTs and 16A of DC input current allows for PV array design flexibility
• Optimization, module-level monitoring, and rapid shutdown options available
• External RSD, EPO signal and BYPASS switch are available
• UL 9540 certified with multiple different battery brands (LG, BYD, Pylontech. ect)
• Bluetooth connection to mobile phone, make the setting and operation easier
• Automatic UPS switching and up to 170% (130A) 300ms surge power back up overload capacity support industral air conditioner
• Intelligent AC coupling scheme, easily upgrade existing grid-connected systems
• Whole-home backup, generator integration, and load shading function with the new SolisHub
• Supports 1ph and 3ph flexible connection on both the Grid and Backup Port


Product Specifications:
INPUT

• Max Input Voltage: 600V
• Rated voltage: 380V
• MPPT Voltage Range: 80~520V
• Start-up Voltage: 80V
• Max Input Current per string: 16A
• Max Short-circuit Current per string: 25.6A
• MPPT number/Number of strings per MPPT: 2/1

ENERGY STORAGE

• Battery type: Lithium-ion
• Battery voltage range: 120-500 V
• Maximum charge/discharge current: 25A
• Battery communication: CAN/RS485
• Number of batteries per inverter: See Battery Compatibility Sheet

AC OUTPUT (GRID)

• Nominal Output Power: 3.8kW
• Max. Apparent Output Power: 3.8kVA
• Rated output voltage: 240V
• Rated output current: 15.8A
• Max. output current: 15.8A

AC INPUT (GRID)

• Input voltage range: 211-264 V
• Max. input current: 23.8 A

AC OUTPUT ( BACKUP AND OFF-GRID)

• Rated output power: 3.8kW
• Max. apparent output power: 6.1kVA, 10sec
• Phase Power: 240 V Split-Phase
• AC output voltage range: 211-264 V
• Rated AC output current: 15.8A
• Max. output overcurrent protection, 10 sec: 6.1A

GENERAL DATA

• Dimensions(W*H*D): 19.21*28.35*8.66 in (490*720*220 mm)
• Weight: 52.43 lbs lbs (23.78 kgs)
• Communication with Portal: RS485, Cellular, Wi-Fi, Optional: LAN

Download
Datasheet:
Solis_datasheet_S6-EH1P_3_8-11_4_K-H-US_USA_V1_8_202407.pdf
User Manual:
Solis_Manual_S6-EH1P11_4K-H-US_20240719.pdf
Certificate:
Solis_UL1741UL1699B UL1998_IEEE2030_S6-EH1P38-114K-H-USV02.pdf
Solis_UL3741_Residential_Brochure_MK-BR-0001-R00.pdf
Solis_Master_Product_Compatibility_PE-CP-0004-R00.pdf
Technical Bulletin
Solis_S6_Hybrid_Neutrals_Service_Bulletin_10_23_23.pdf
