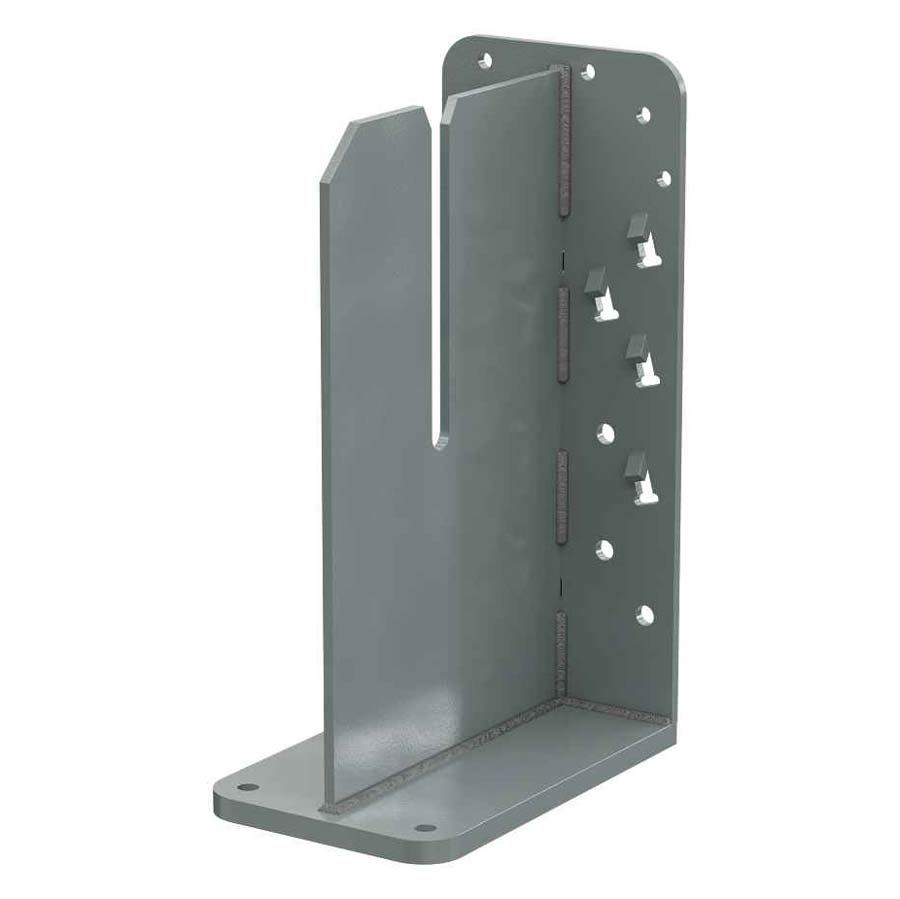

Simpson Strong-Tie HSKP5.75X14.5 Heavy Seated Knife Plate Hanger - Gray Paint

The Simpson Strong-Tie HSKP5.75X14.5 Seated Knife Plate Hanger delivers exceptional strength and a clean, concealed connection for engineered wood construction. Designed for beam-to-column or beam-to-steel applications, this hanger supports heavy loads while preserving architectural aesthetics.

Featuring a heavy-seated design with a factory-installed knife plate and screws, the HSKP hanger installs quickly and supports up to 32,000 lbs. It's ideal for commercial, residential, and institutional projects using mass timber systems where visual appeal and structural performance go hand-in-hand.

Key Features:

• Code-Listed Performance: Supports up to 32 kips (32,000 lbs) with a two-hour fire resistance rating
• Clean Aesthetic: Concealed hanger design keeps hardware hidden for an exposed timber look
• Factory-Friendly Design: Installed in-shop using Strong-Drive SDCF Timber-CF structural screws
• Easy Fit-Up: Generous placement tolerance helps speed up installation on the jobsite
• Flexible Application: Works in wood-to-wood or wood-to-steel structural configurations

Applications:

• Mass timber construction using glulam, CLT, or other engineered wood members
• Beam-to-column or beam-to-steel connections requiring a concealed load path
• Commercial buildings, schools, residential homes, and public spaces

Installation:

1. Factory Install: Align the HSKP hanger with the beam, and fasten it using SDCF Timber-CF screws.
2. On-Site Assembly: Lower the beam into position so the knife plate seats properly in the column slot.
3. Secure Fit: Ensure proper seating and adjust using the built-in tolerance for alignment accuracy.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
