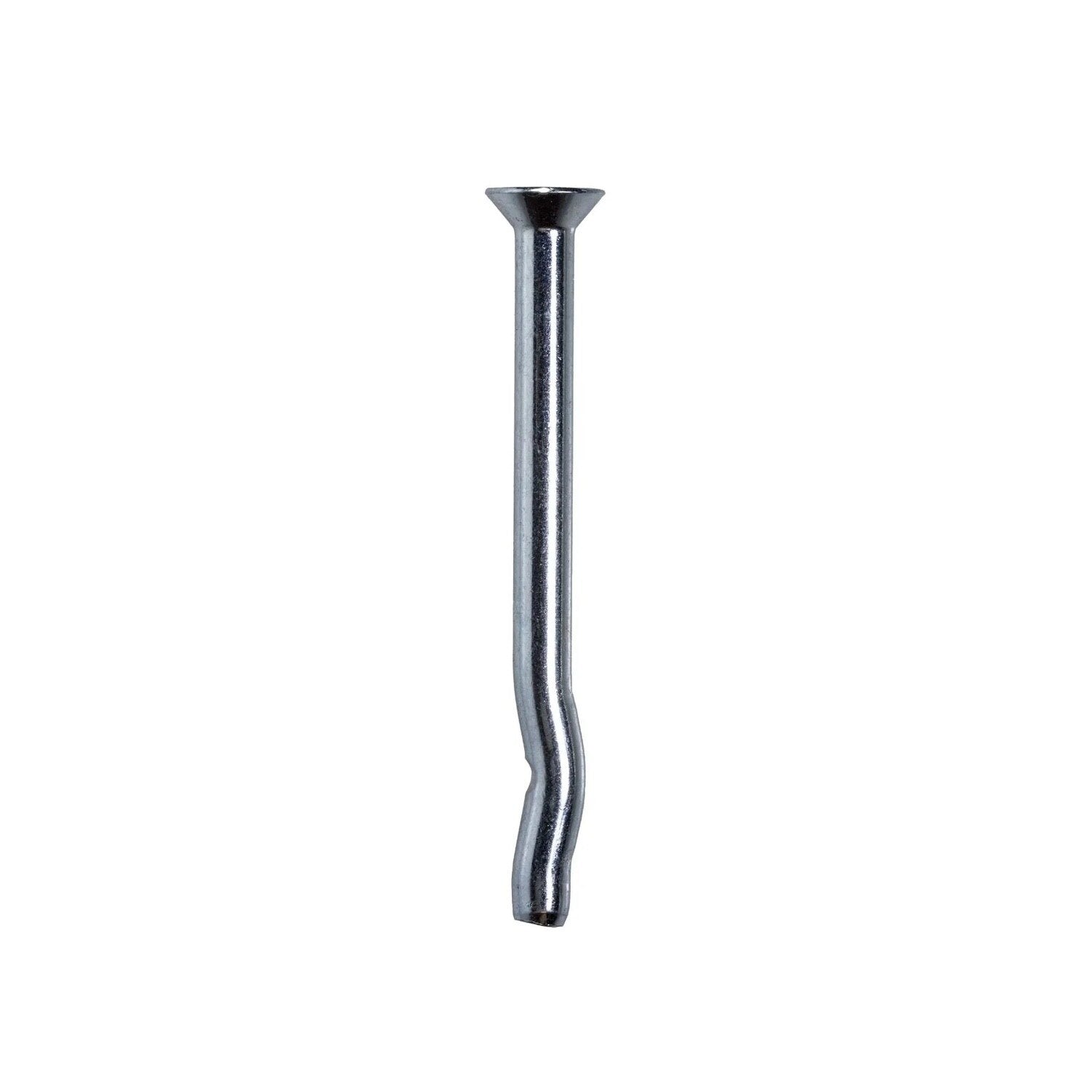

Simpson Strong-Tie CD18400C (3/16" x 4") Crimp Drive Anchor Zinc-Plated Countersunk Head (100 Pack)
Simpson Strong-Tie CD18400C (3/16" x 4") Crimp Drive Anchor Zinc-Plated Countersunk Head (100 Pack)

Simpson Strong-Tie CD18400C (3/16" x 4") Crimp Drive Anchor Zinc-Plated Countersunk Head (100 Pack)

$33.10
$33.10
Please hurry! Only 1000 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Subtotal: $33.10

Free Shipping

Free standard shipping on orders over $60

Size Guide

Understanding Mylulusstore Sizing
Simpson Strong-Tie CD18400C (3/16" x 4") Crimp Drive Anchor Zinc-Plated Countersunk Head (100 Pack)

Simpson Strong-Tie CD18400C (3/16" x 4") Crimp Drive Anchor Zinc-Plated Countersunk Head (100 Pack)

$33.10
Simpson Strong-Tie CD18400C (3/16" x 4") Crimp Drive Anchor Zinc-Plated Countersunk Head (100 Pack)

Simpson Strong-Tie CD18400C (3/16" x 4") Crimp Drive Anchor Zinc-Plated Countersunk Head (100 Pack)

$33.10
Description
Description
x

Simpson Strong-Tie CD18400C Description

The Simpson Strong-Tie Crimp Drive anchor is an easy-to-install expansion anchor for use in concrete and grout-filled block. The pre-formed curvature along the shaft creates an expansion mechanism that secures the anchor in place and eliminates the need for a secondary tightening procedure.

Simpson Strong-Tie CD18400C Includes

  • (100) Crimp Drive Anchor Zinc-Plated Countersunk Head

Simpson Strong-Tie CD18400C Features

  • Unique curved shaft design that speeds up anchor installation and reduces overall project cost
  • Countersunk head allows for a smooth surface when attaching wood or light gauge steel to concrete and grout-filled block
  • Available in five different head styles

Simpson Strong-Tie CD18400C Applications

  • Brick — Solid
  • Mushroom head provides a tamper-proof solution
  • Countersunk head provides a zero-profile solution
  • Rod-coupler head allows for threaded rod attachments
  • Tie-wire head for suspended ceiling applications
  • Duplex head allows for easy removal in temporary applications

Simpson Strong-Tie CD18400C Installation Overview

  1. Drill a hole using the specified diameter carbide bit into the base material to a depth of at least 1/2" deeper than the required embedment.
  2. Blow the hole clean of dust and debris using compressed air. Overhead application need not be blown clean.
  3. Where a fixture is used, drive the anchor through the fixture into the hole until the head sits flush against the fixture.
  4. Be sure the anchor is driven to the required embedment depth.
  5. The rod coupler and tie-wire models should be driven in until the head is seated against the surface of the base material.

Simpson Strong-Tie CD18400C Specifications

Material Carbon Steel
Finish Zinc Plated
Diameter 3/16"
Length 4"
Drill Bit Diameter 3/16"
Fixture Hole Diameter 1/4"
Minimum Embedment Depth 1-1/4"
Quantity 100

NOTE: Industry studies show that hardened fasteners can experience performance problems in wet or corrosive environments. Accordingly, with the exception of the duplex anchor, use these products in dry, interior and non-corrosive environments only.
