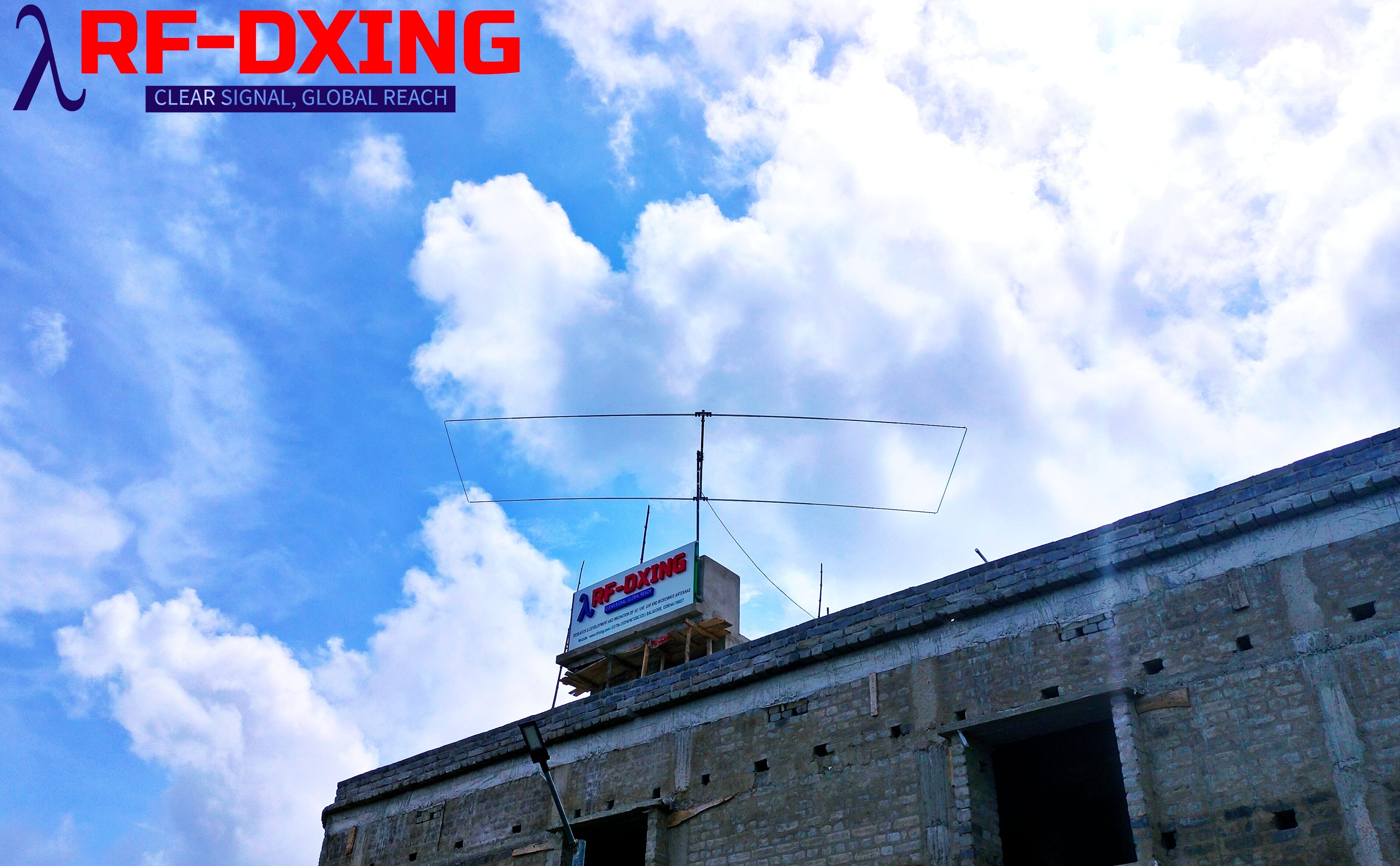

RFD-MX20 is a high performing mono band moxon antenna for 20m band with boom length of 2.82 m and 4.26m turning radius. The antenna is optimized for best possible front back ration , gain and side lobe suppression. Due to the heavy duty construction that makes it lifetime antenna.
Electrical Specifications
|
Bands/Frequency |
20m(14-14.35 MHz) |
|
Gain( Free Space) |
6.11 dBi ( Peak: 6.41 dBi) @ 14.140 MHz |
|
F/B |
29.11 dB ( peak: 29.19 dBi) @ 14.140 MHz |
|
VSWR |
Less than 1.5across the band( 600 Khz) |
|
Impedance |
50 ohm |
|
Power rating/Matching |
3 KW+/ 1:1 Maxwell choke |
|
Radiation Pattern |
Directional |
Mechanical Specifications
|
Boom Length |
2.8m |
|
Boom Dimension |
38mm*38mm*3mm |
|
Mounting Mast Diameter |
1.5 Inch to 2 Inch |
|
Width of the Antenna |
8.1m |
|
Tapered Elements |
30 mm to 12 mm |
|
Connector |
SO-239 |
|
Turning Radius |
4.1 m |
|
Wind speed Survival |
150 Km/h |
|
Antenna Weight |
13 kg |
|
Gross Weight Including Shipping Box |
15.100 kg |
|
Shipping Box Dimension |
1.85m |
|
Material used |
Aluminum 6063, 6061, SS-304, Industrial Grade Polyamide Clamp (Heavy Duty) |
Download Manual: Click Here
