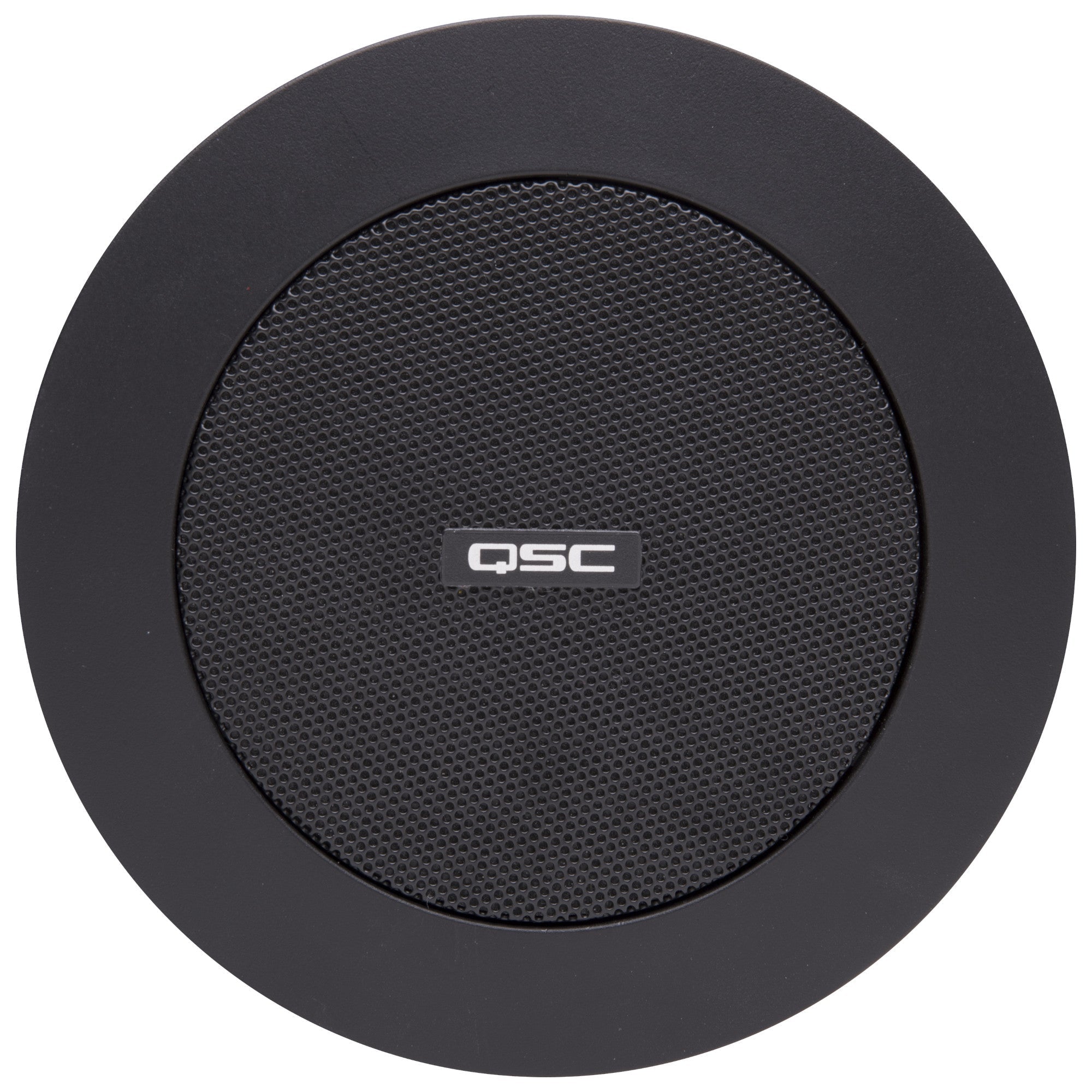

QSC AD-C.SAT AcousticDesign 2.75-Inch Ceiling Speaker

Use the AD-C.SAT ceiling speaker from QSC to enjoy consistent tonal characteristics with any other speaker from the AcousticDesign™ Series.

A high-quality 2.75” weather-treated paper cone woofer in the AD-C.SAT ceiling speaker from QSC is complete with an inverted aluminum dust cap to offer extended high-frequency presence within the sealed enclosure.

Rated at 16Ω, up to four satellites can be connected to the AD-C.SAT’s high-pass filtered outputs. Satellites can also be used as stand-alone loudspeakers with the use of an external high-pass filter.

Experience optimized performance and a faster install process with Intrinsic Correction™ voicings. These voicings are seamlessly deployed via MP-M Series music and paging mixers or Q-SYS Platforms (such as CXD-Q Series amps).

The input is easy to access, located behind a removable conduit cover plate with captive screws that keep it in place during installation. This removable conduit cover plate also uses locking 2-pole Euroblock style connectors capable of 12AWG wire thickness.

With aesthetics being of considerable importance, the rugged ABS baffle gets additional protection from UV inhibitors. These inhibitors also prevent discoloration. A stick-on logo on the magnetic grille can be removed without creating any blemish.

Easily install the AD-C.SAT into the ceiling thanks to the 2x long travel dog-ear blind mounting system. This system captures 0-1.75 inches of ceiling thickness.

More about the AcousticDesign™ Series from QSC

The AcousticDesign™ Series places performance, consistent coverage, and aesthetics as the most important qualities of their SUB and SAT speaker options. Series was designed specifically to maintain a consistent tonal characteristic no matter what style of speaker is being used, so integrators get seamless transitions within blended installations. Part of the AcousticDesign™ Series, the AD-C.SAT is ideally suited for background music applications that demand refined depth and clarity even when the volume is lower.
