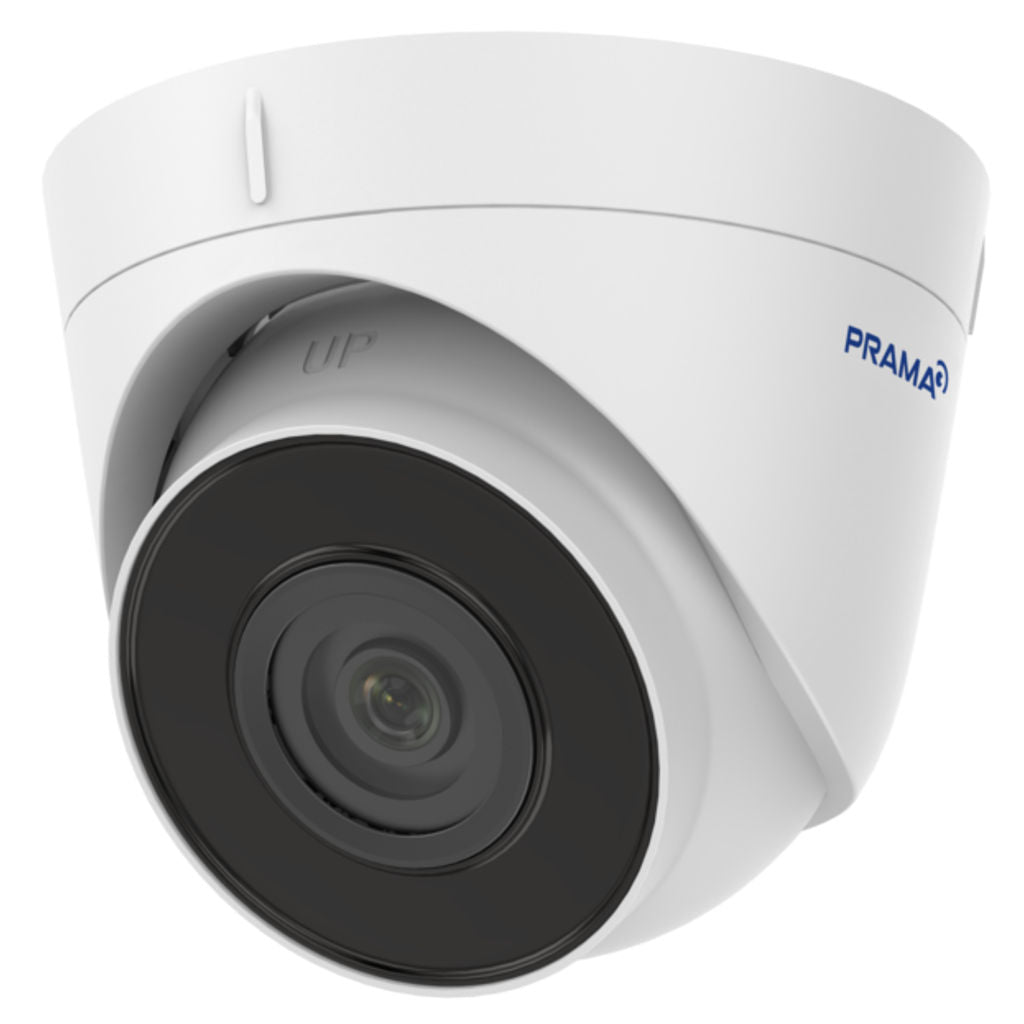

Prama 1.3MP Fixed Turret Network Camera PT-NC113D3-I(DE)

Brand

Prama

Product Type

Network Camera

Product Model

PT-NC110D3-I (DE)

Camera

Image Sensor

1/2.7 inch Progressive Scan CMOS

Minimum Illumination

Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR

Shutter Speed

1/3 s to 1/100, 000 s

Slow Shutter

Yes

Wide Dynamic Range

Digital WDR

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Lens

Focal Length & FOV

2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2°
4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°

Lens Mount

M12

Focus

Fixed

Aperture

F2.0

Illuminator

IR Wavelength

850 nm

IR Range

Up to 30 m

Video

Maximum Resolution

1280 × 960

Main Stream

50 Hz: 25 fps (1280 × 960 )
60 Hz: 30 fps (1280 × 960 )

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)

Video Compression

Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

H.264+

Main Stream supports

H.265+

Main Stream supports

Region of Interest (ROI)

1 fixed region for main stream

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,
UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS

Simultaneous Live View

Up to 6 channels

API

ISAPI

User/Host

Up to 32 users. 3 levels: administrator, operator and user

Client

PRAMA VMS Standard, PRAMA-ONLINE

Web Browser

Plug-in requIRed live view: IE 10+
Plug-in free live view: Chrome 57.0+, FIRefox 52.0+
Local service: Chrome 57.0+, FIRefox 52.0+


Image Settings

Saturation, brightness, contrast, sharpness, AGC, white balance adjustable
by client software or web browser.

Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, 3D DNR

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

Basic Event

Motion detection, video tampering alarm, exception

General

Linkage Method

Upload to FTP, notify surveillance center, send email

Camera Material

Metal & Plastic

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)

Web Client Language

English

General Function

Anti-flicker, heartbeat, mIRror, password protection, privacy mask,
watermark, IP address filter

Firmware Version

V5.5.120

Power Consumption and Current

12 VDC, 0.4 A, Maximum 5 W
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, Maximum 6.5 W

Power Supply

12 VDC ± 25%
PoE: 802.3af, Class 3

Power Interface

Ø5.5 mm coaxial power plug

Protection

IP67 (IEC 60529-2013)

Warranty

As Per Manufacturer Terms and Condition

Dimension (CM) - L x B x H

86.7 x 81.6 x 226

Unit of Measurement

1 Piece

Weight

140 g

Generic Type

Network Camera

Manufacturer Details

Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900

Packer Details

Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900

Country of Origin

India
