Description

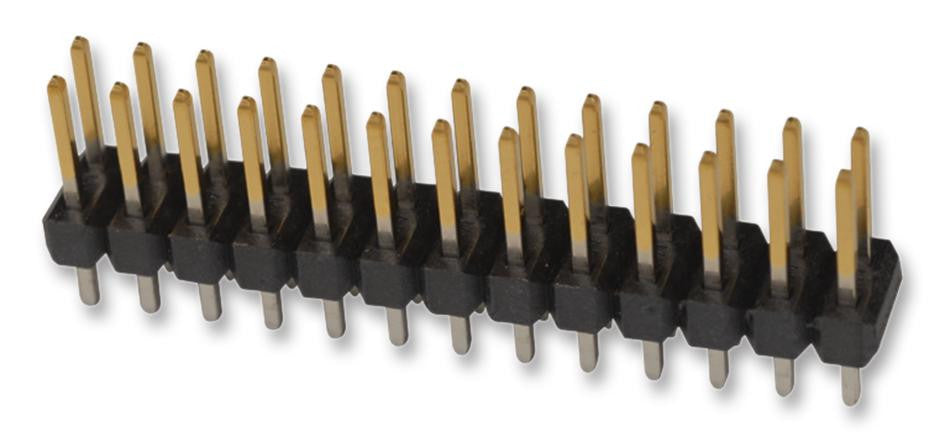

xThe 10-89-7402 is a 40-circuit 2-row 2.54mm pitch C-Grid� Breakaway Vertical Header with gold-plated copper alloy contacts, tin-plated 2.72mm PC tail and through hole termination. This 70280 series PCB header is made of high temperature thermoplastic, suitable for board-to-board, signal and wire-to-board applications.
- FFC and IDT assemblies pre-assembled - Easy to use
- Press-fit compliant-pin, low-profile, latching header - Design flexibility
- Black colour
- UL94V-0 Flammability rating
- 3A Current rating per contact
- 250V Voltage rating
- -40 to 105�C Temperature range
Applications
Automotive, Consumer Electronics, Communications & Networking, Medical, Lighting, Industrial, Computers & Computer Peripherals, Audio
Product details
| No. of Contacts | 40Contacts |
| Contact Plating | Gold Plated Contacts |
| Gender | Header |
| Product Range | C-Grid 70280 Series |
| Contact Material | Copper Alloy |
| Contact Termination Type | Through Hole |
| Pitch Spacing | 2.54mm |
| No. of Rows | 2Rows |
Other details
| Brand | MOLEX |
| Part Number | 10-89-7402 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| 3D Product Image EN | |
| Product Change Notice EN | |
