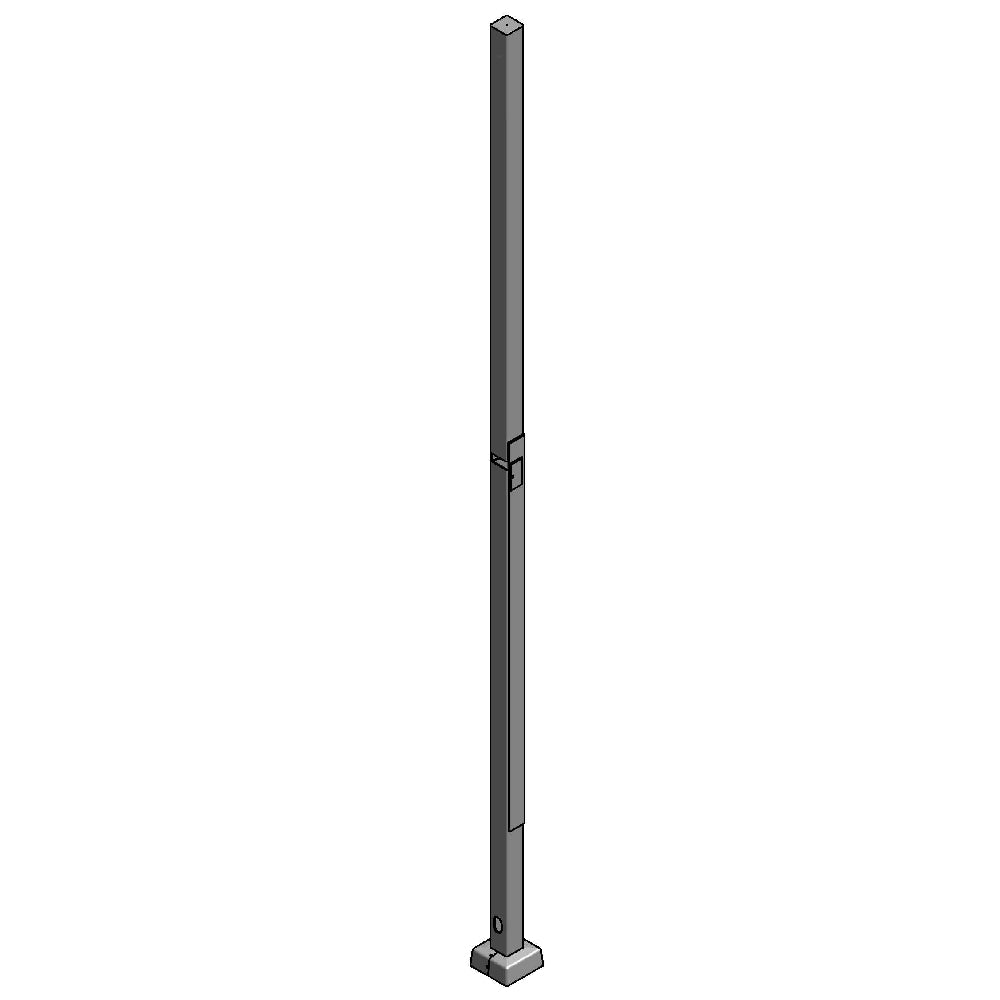

xLyte Poles 501 Square Straight Hinged Steel
Pole Shaft Specifications
The pole shafts two-section design is fabricated from United States standard coil stock. It is a weldable-grade, hot-rolled, commercial-quality carbon steel ASTM A-500 Grade B with a guaranteed minimum yield strength of 46,000 psi after fabrication. Each section is a one-piece construction with a full-length longitudinal resistance weld and is square in cross section.
Base Plate Cover
A full base plate cover is supplied. For 20-35' poles, the base cover is automotive structural grade ABS plastic with a UV inhibitor to eliminate color fading. It is rust proof and tamper resistant. For 39-60' poles, the base cover is made of two-piece formed sheet steel.
Lowering Winch
A portable lowering winch is required with hinged poles and should be ordered as a separate item.
| Catalog Number | Mounting Height | Effective Projected Area | Shaft Dimensions | Base Info | Base Plate | Cutsheet | Template | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 80 | 90 | 100 | 120 | Butt | Top | Anchor Bolt Diameter | Bolt Circle | Square | Height | ||||
| 501-4007-20 | 20 | 13.5 | 10.8 | 9.3 | 6.9 | 4x7 | 4x11 | .75x28 | 9.5 | 10 | 0.75 | View | View |
| 501-5007-20 | 20 | 24.4 | 19.3 | 15.2 | 9.4 | 5x7 | 5x11 | 1x40 | 11 | 11 | 1 | View | View |
| 501-4007-24 | 24 | 9.5 | 7.7 | 6.1 | 3.8 | 4x7 | 4x11 | .75x28 | 9.5 | 10 | 0.75 | View | View |
| 501-6007-24 | 24 | 25.2 | 18.6 | 14.3 | 8.6 | 6x7 | 6x7 | 1x40 | 11.5 | 12 | 1 | View | View |
| 501-4007-30 | 30 | 4.5 | 3.5 | 2.9 | 1.9 | 4x7 | 4x11 | .75x28 | 9.5 | 10 | 0.75 | View | View |
| 501-6007-30 | 30 | 19 | 14 | 10.8 | 6.4 | 6x7 | 6x7 | 1x40 | 11.5 | 12 | 1 | View | View |
| 501-6007-35 | 35 | 12.1 | 7 | 3.6 | N/A | 6x7 | 6x7 | 1x40 | 11.5 | 12 | 1 | View | View |
