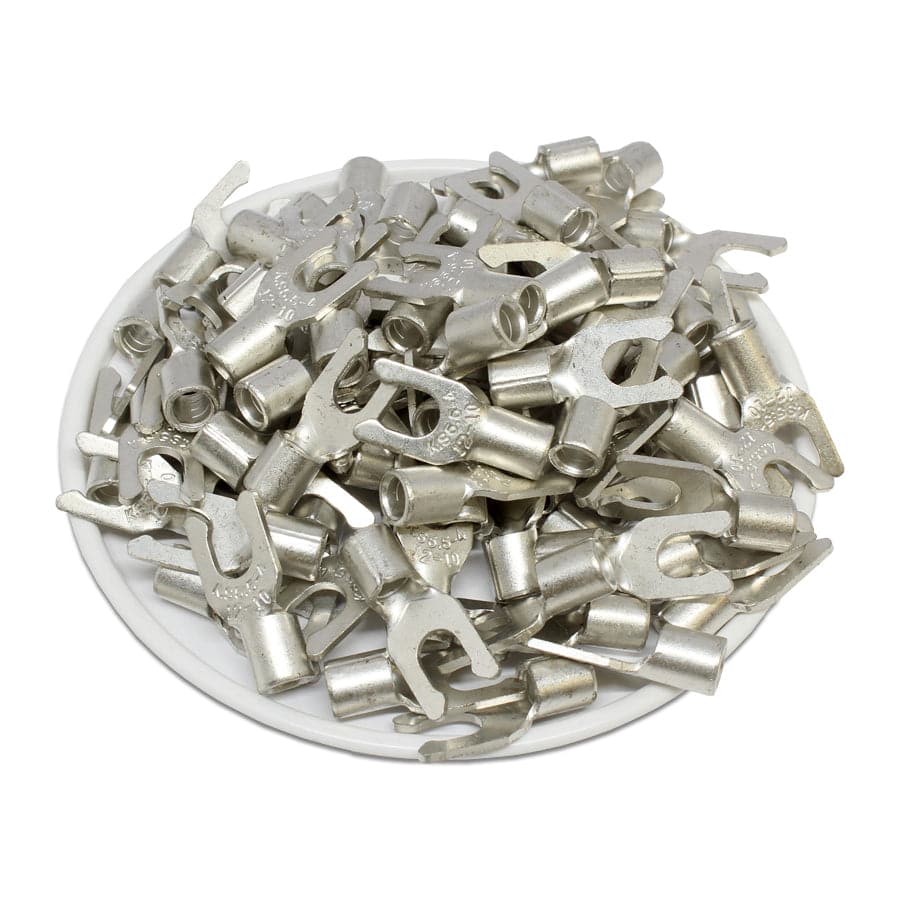

xNON INSULATED SPADE TERMINALS
Non-insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength.
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Seam: | Brazed |
| Stud Size: | #8 |
| Terminal Material: | Tin-Plated Copper |
| Max Electrical Current: | 50AMP |
| T: | 1.0mm (0.04") |
| L: | 18.2mm (0.78") |
| F: | 7.0mm (0.28") |
| E: | 6.0mm (0.24") |
| W: | 8.3mm (0.33") |
| D: | 5.6mm (0.22") |
| D1: | 3.4mm (0.13") |
| D2: | 4.3mm (0.17") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:McMaster-Carr: 8007K18
Thomas Betts: C10-8FL
