Description

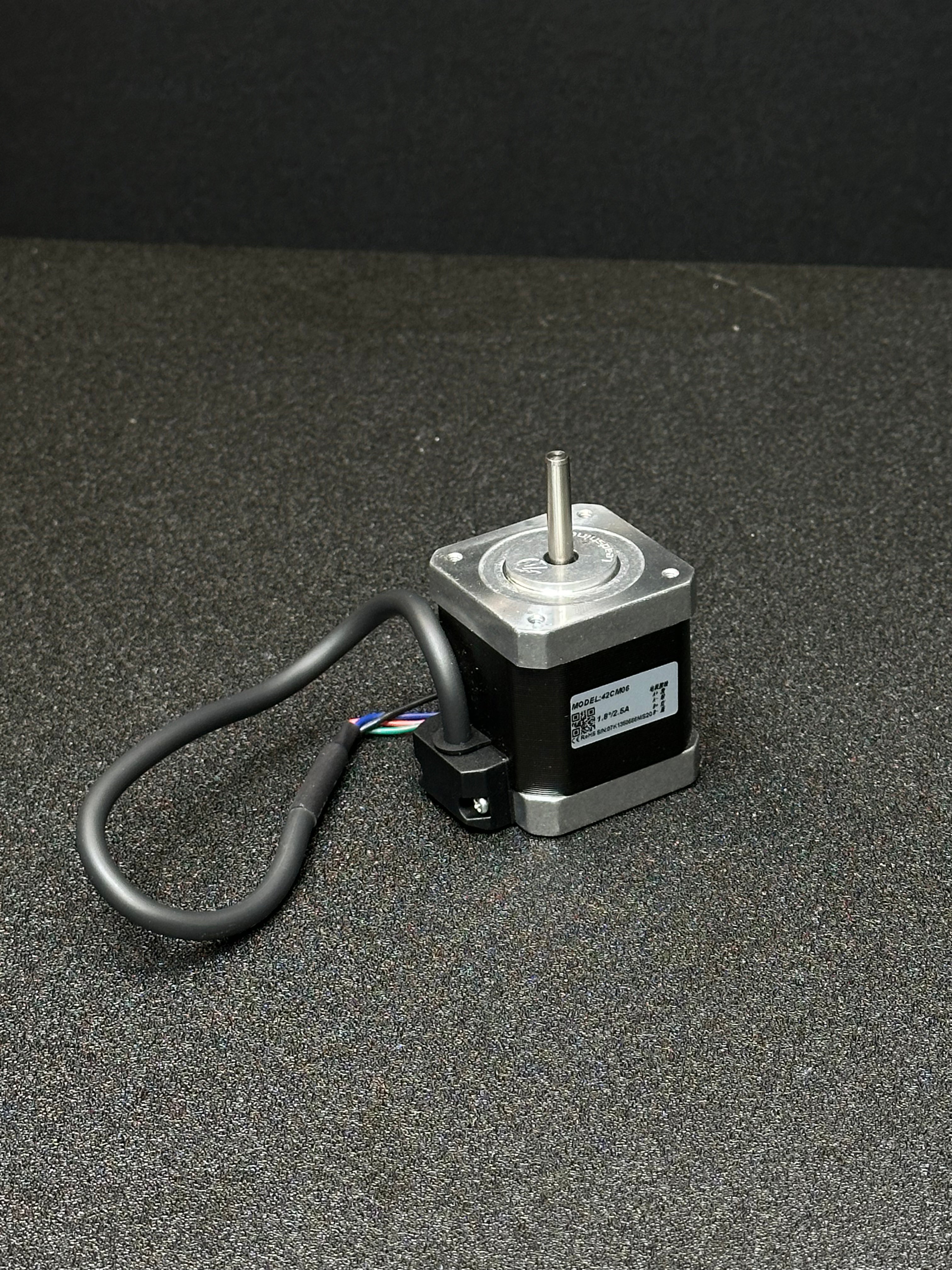

x42CM06 2.5A 42mm Long Stepper motor
The CM series stepper motors can be implemented in many industrial motion control applications. Built with premium quality materials including bearings and shaft made by famous manufacturers, they can move the attached load at high precision and with very low motor heating & vibration.
Specs:
-
2 phase, NEMA 17 frame size
-
47 mm (1.85 inch) long
-
2.5 A phase current
-
0.6 N.m (85 oz-in) holding torque
-
5 mm (0.197 inch) D-shaft size 22mm Long
-
Built with high quality materials including bearings and shaft made by Japanese manufacturers
-
High precision, low motor heating, and low vibration
More info:
| Model | 42CM06 |
| Frame Size (NEMA) | 17 |
| Length (mm) | 47 |
| Holding Torque (N.m) | 0.6 |
| Phase Current (A) | 2.5 |
| Shaft Diameter (mm) | 5 |
| shaft length (mm) | 22 |
| IP Rate | IP40 |
| Characteristics | Standard |
| Resistance (ohm) | 0.9 |
| Inductance (mH) | 1.6 |
| Inertia (kg/cm2) | 0.072 |
| Weight (kg) | 0.35 |
Notes:
These are terminated on bare wire and do not include any JST connectors. Wires are about 11 inches long.
