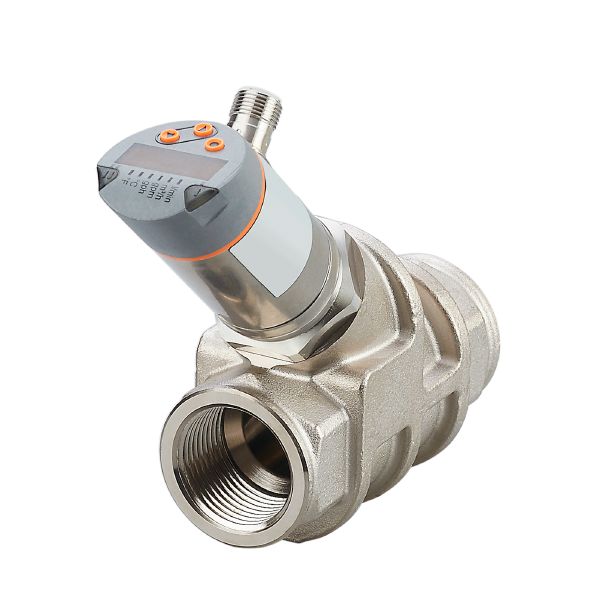

Description
x
Product characteristics
| Measuring range |
|
||||
|---|---|---|---|---|---|
| Process connection | threaded connection G 1 Internal thread |
Application
| System | gold-plated contacts | |
|---|---|---|
| Media | Liquids; oils (viscosity 68 mm²/s at 40 °C) | |
| Medium temperature [°C] | -10...100 | |
| Pressure rating [bar] | 100 | |
| Pressure rating [MPa] | 10 | |
| Note on pressure rating |
|
Electrical data
| Operating voltage [V] | 18...30 DC; (to SELV/PELV) |
|---|---|
| Current consumption [mA] | < 50 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | < 3 |
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; analog signal; frequency signal; IO-Link |
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output DC [V] | 2 |
| Max. current load per output [mA] | 150; (200: ...60 °C; Ambient temperature; 250: ...40 °C; Ambient temperature) |
| Analog current output [mA] | 4...20 |
| Max. load [Ω] | 500 |
| Short-circuit protection | yes |
| Overload protection | yes |
| Frequency of the output [Hz] | 0...10000 |
Measuring/setting range
| Measuring range |
|
||||
|---|---|---|---|---|---|
| Display range |
|
||||
| Resolution |
|
||||
| Set point SP |
|
||||
| Reset point rP |
|
||||
| Frequency end point, FEP |
|
||||
| In steps of |
|
||||
| Frequency at the end point FRP [Hz] | 10...10000 | ||||
| In steps of [Hz] | 10 | ||||
| Measuring dynamics | 1:50 |
Temperature monitoring
| Measuring range |
|
||
|---|---|---|---|
| Display range |
|
||
| Resolution |
|
||
| Set point SP |
|
||
| Reset point rP |
|
||
| In steps of |
|
||
| Frequency start point, FSP |
|
||
| Frequency end point, FEP |
|
||
| Frequency at the end point FRP [Hz] | 10...10000 | ||
| In steps of [Hz] | 10 |
Accuracy / deviations
Flow monitoring
| Accuracy (in the measuring range) | ± 5 % MEW; (Q > 1 l/min; 20...70 °C Medium temperature) |
|---|---|
| Repeatability | ± 1 % MEW |
Temperature monitoring
| Temperature drift | 0,029 °C / K |
|---|---|
| Accuracy [K] | 3 K (25°C; Q > 1 l/min) |
Reaction times
Flow monitoring
| Response time [s] | 0.01 |
|---|---|
| Damping process value dAP [s] | 0...5 |
| In steps of [s] | 0.1 |
| Damping for the analog output dAA [s] | 0...5 |
| In steps of [s] |
