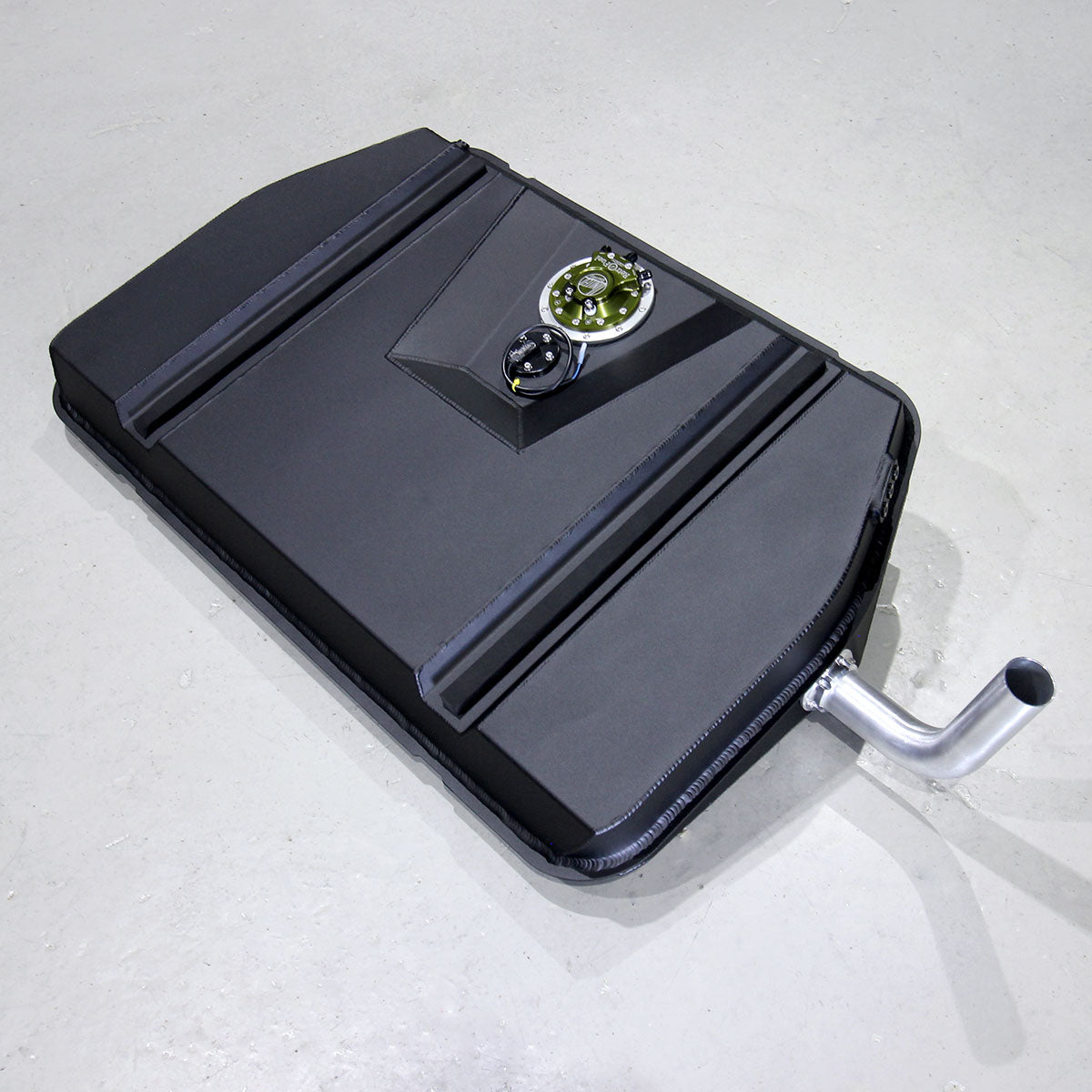

HQ-HZ Holden Wagon Fuel Tank

We now offer these direct replacement, bolt in (no modifications necessary) aluminium fuel tanks for HQ-HZ Holden Station Wagon. They are EFI ready and also will work for carburetted applications.

• Internally baffled and sumped for fuel control
• 3mm TIG welded aluminium construction
• Direct bolt in fit (using existing factory mount straps)
• Suitable for EFI or carburetted applications
• Designed to accept RetroFuel pumps plus others upon request
• Complete with modern tube type sending unit (available in different ohm ranges)
• Capacity: 85L
• Billet fuel filler neck and cap
• Powder coated as standard
• 4 x -8 ORB outlets (block off plugs supplied)

Optional fuel pumps:

RetroFuel MACH 1 ($945)

• Supports up to
  500 HP EFI – Naturally Aspirated


RetroFuel MACH 2 ($1045)

• Supports up to
  650 HP EFI – Naturally Aspirated
  470 HP EFI – Forced Induction


RetroFuel MACH 3 ($1245)

• Supports up to
  1100 HP EFI – Naturally Aspirated
  800 HP EFI – Forced Induction
  750 HP EFI – Naturally Aspirated (E85)
  550 HP EFI – Forced Induction (E85)


RetroFuel MACH 6 ($1545)

• Supports up to
  2200 HP EFI – Naturally Aspirated
  1600 HP EFI – Forced Induction
  1500 HP EFI – Naturally Aspirated (E85)
  1100 HP EFI – Forced Induction (E85)


These pumps are also suitable for carburetted applications with the use of a return style regulator - see our fuel pump comparison chart here for supported power levels.

Custom colour powder coating is available on request.

We can still supply and fit Aeromotive or other types of pumps on request – contact us.

All tanks are currently made to order so please allow approx. 6 weeks for delivery.
