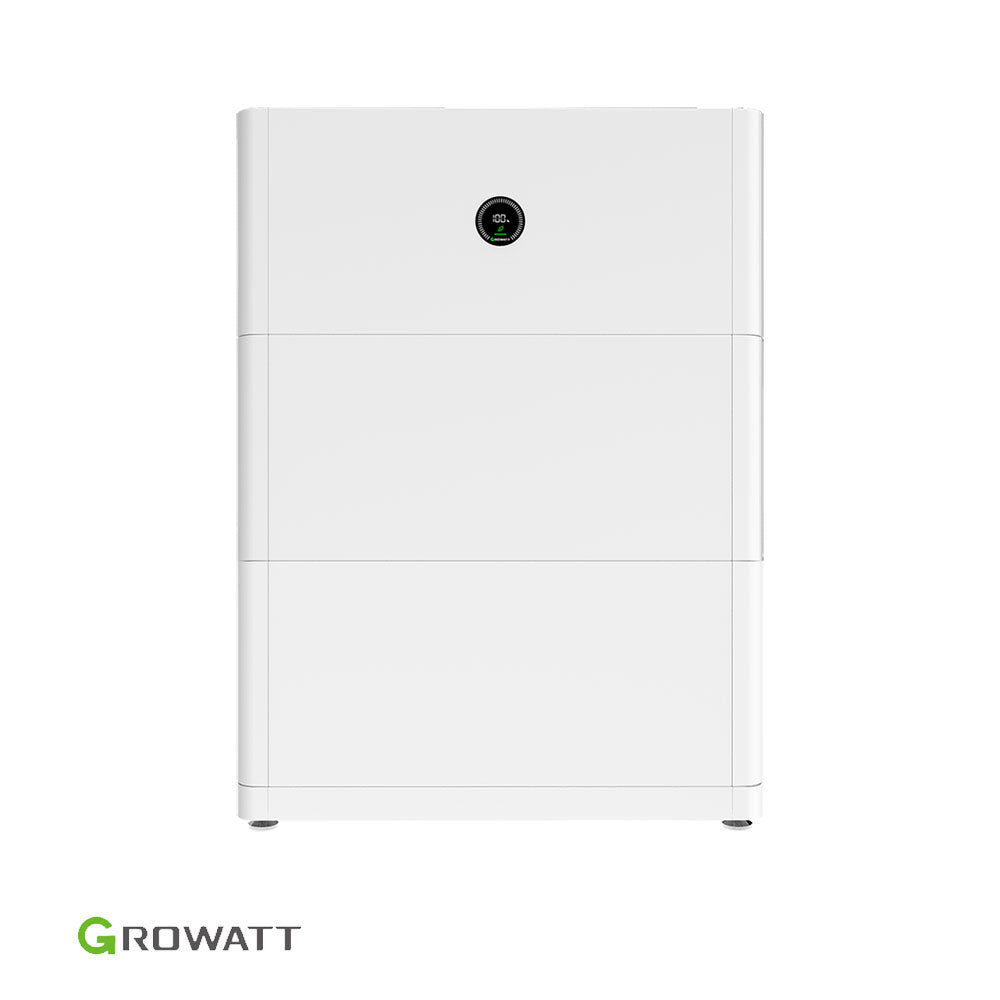

Growatt APX 10kWh High Voltage Battery | Compatible with Growatt MIN Series Grid-tie Inverter | Certificated UL 9540

Growatt’s new APX HV battery system is composed of an APX 55042-P0-US (hereinafter referred to as Power Module) and multiple APX 5.0P-B1-US battery modules (hereinafter referred to as Battery Module, the maximum number of Battery Module connected in parallel is 6), enables a flexible capacity from 5kWh to 30kWh. The APX HV battery is compatible with Growatt MIN series Grid-tie inverters (3~11.4kW), and the entire system can switch between Grid-tied and Off-grid modes through the Growatt backup box( ATS-US or SYN 200XH-US)

The APX battery system adopts cobalt-free LiFePO4 chemistry and four-level protection by BMS, modular energy optimizer, fuse, and aerosol to ensure its enhanced safety, reliability, and long lifespan. Furthermore, the modular energy optimization ensures the system fully uses every pack's energy, mixes packs of new and old batches, and mixes packs of different capacity, which offer the most flexible system application

The stackable design of the APX HV battery system makes it easier to install with internal plugs, requiring no extra cable connections. So both installation and maintenance were made simple.

Product Overviews:

Features:

• Easy Installation:
  - Stacked installation without a cable connection
  - Module automatic recognition


• Environment Adaptability
  - Wide temperature of -10°C~50°C
  - IP 66 Design


• Safety and Reliability:
  - Cobalt-free LiFePO4 battery
  - Built-in modular energy optimization
  - Soft start to defend the system from surges
  - Passive protection by fuse and aerosol


• Expansion Flexibility
  - Battery soft-switching parallel connection
  - Mixed packs of new and old batches
  - Mixed packs of different capacity
  - Mixed packs of different suppliers

Product Specifications

• Nominal Voltage: 400V
• Operating Voltage: 380~550V
• Peak output Power: 3.5~19.2kW, 60s
• Power module Max Current: 32A
• DOD: 90%

• Cycle Life: >6000 cycles

• IP Protection IP66 /NEMA 4x
• Communication Protocol:  RS485, CAN

• Connect style: Parallel

Shipping and Packaging

• The battery can only ship via freight truck

Download
APX Battery Specs

User Manual & Installation Guide
APX Battery User Manual
APX Battery  Installation Quick Guide

Certificates
APX HV Battery UL9540A-1
APX HV Battery UL9540A-2
APX HV Battery UL1973
APX HV FCC

Growatt Inverter Warranty-10years
Growatt Warranty Letter ( US )
