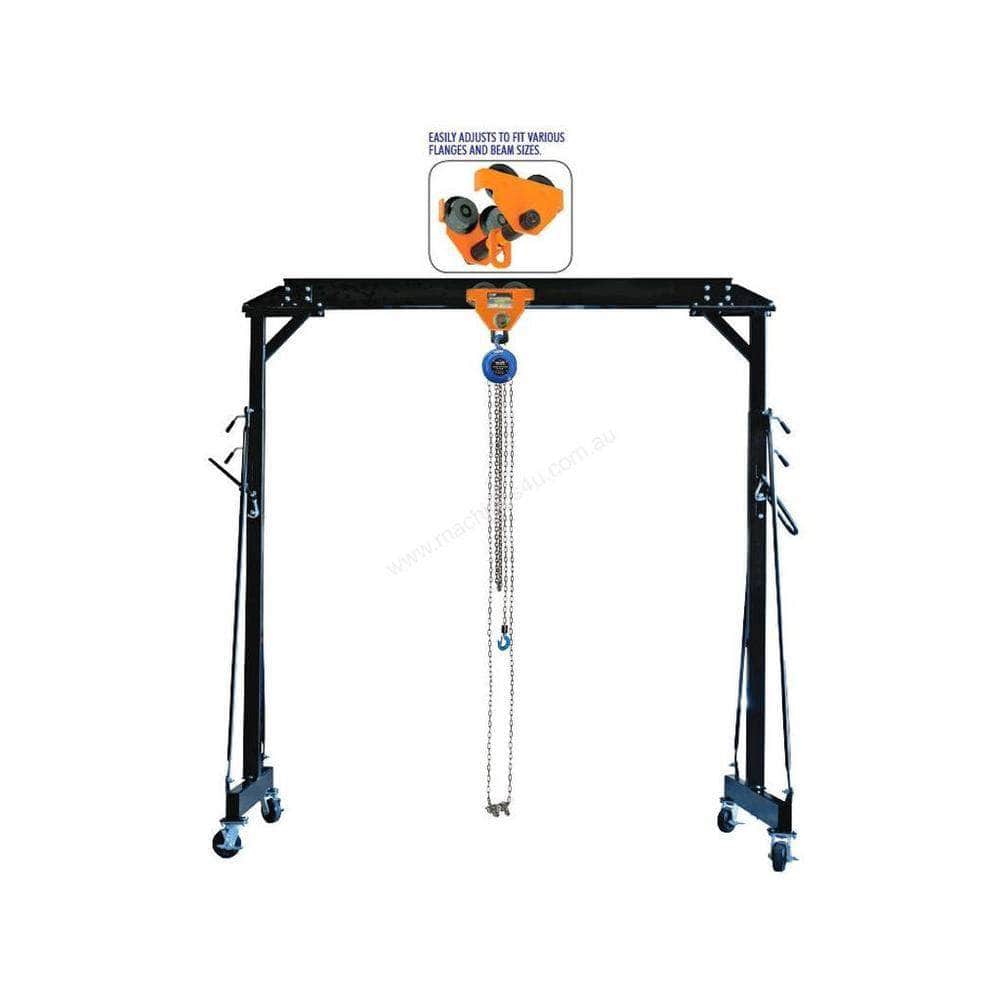

Grip 18140BD 950kg Adjustable Wheeled Gantry with Chain Block & Push Girder Trolley Kit

To safely facilitate the lifting of heavy component objects and materials, especially when safe, level lifting is essential. Ideal for maintenance, manufacturing and other material handling jobs.

Caution: Gantry is not to be moved while loaded. An ideal companion for use with Grip chain blocks, levering chain hoists, heavy duty engine load leveler and adjustable girder trolley.

Features:

• Heavy duty all steel construction.
• I beam cross member for added strength.
• Quick release safety locking pins on both sides.
• 4 × 125mm diameter heavy duty swivel castor wheels, with brakes for greater
• manuverability and stability.
• Easy assembly and disassembly allows easy transport within the workplace or from site to site.
• Black baked enamel finish for corrosion resistance.
• Australian Standard compliance.

Specifications:

• Working load capacity: 950kg
• Adjustable height: 2500 - 3600 mm
• Inside frame clearance: 2300mm
• Shipping box dimensions: (L x H x W) 2260 × 200 × 500mm
• Weight(nett): 154kg
