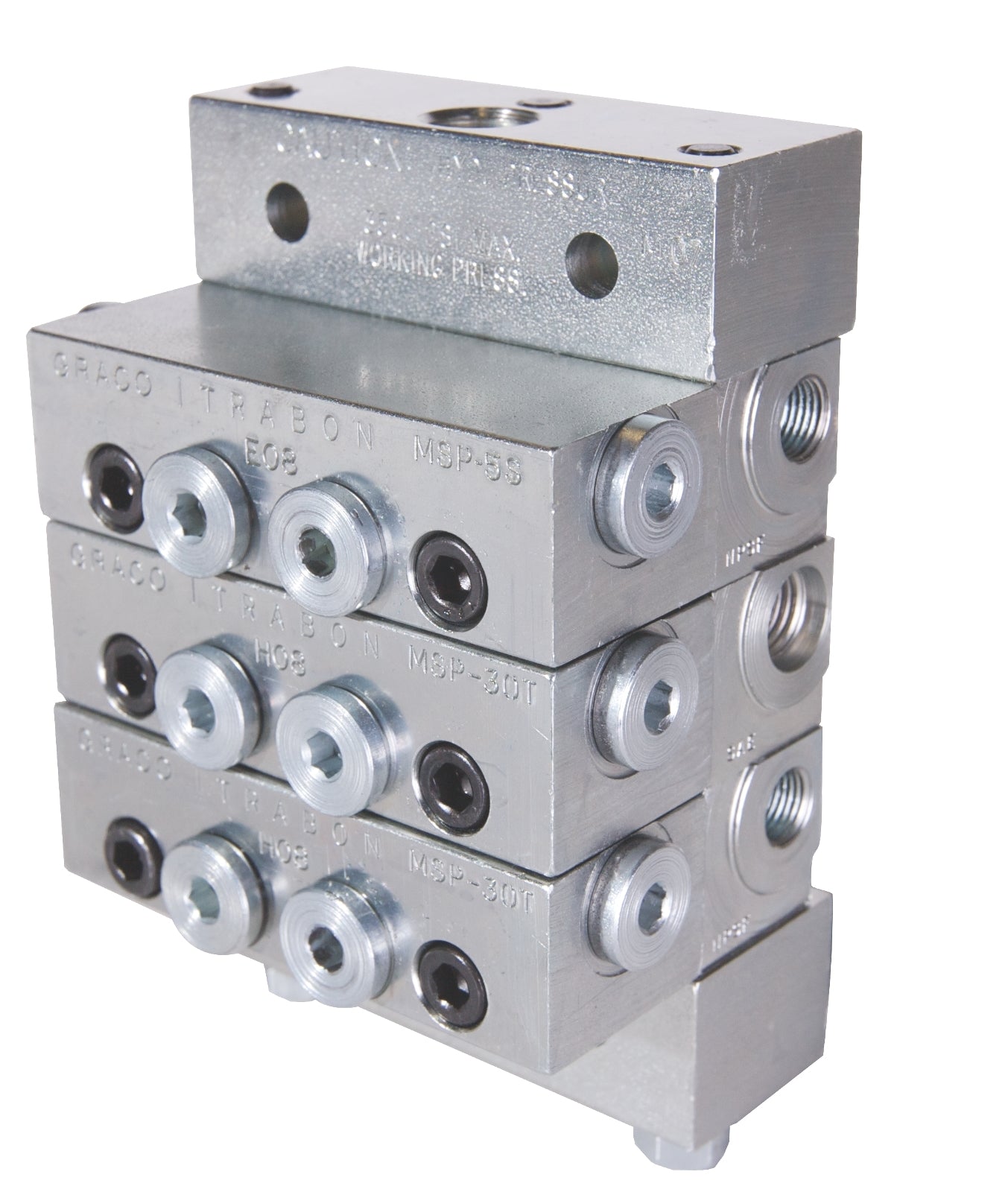

The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve and is still the best!
Size Guide
Understanding Mylulusstore Sizing
Description
x- Quick change valve sections can be removed from the base assembly without disturbing any lube lines - minimising labour cost and maximising your machine uptime
- Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event.
- Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting
- Built-in outlet check valves ensure accurate lube delivery every time
- Lubriquip part number 106-100-025
UPC Product: 00633955347847
Family Code: FAMMPM
Unit of Measure: EA
Height:
1.2 IN
| 3.048 CM
Length:
3.6 IN
| 9.144 CM
Width:
2.4 IN
| 6.096 CM
Volume:
.01 FT3
| 0 M3
Chargeable Weight:
.8 LBS
| .36 KG
Technical Specifications
| Maximum Cycle Rate (cycles/min) | 200 |
|---|---|
| Minimum Working Pressure (bar) | 14 |
| Maximum Working Pressure (psi) | 3500 |
| Minimum Working Pressure (psi) | 200 |
| Number of Outlets | 1 |
| Maximum Working Pressure (bar) | 241 |
| Maximum Operating Temperature (°F) | 350 |
| Cycle Indicator | None |
| Maximum Working Pressure (kPa) | 24100 |
| Maximum NLGI Grade | #2 |
| Material | Carbon Steel |
| Compatible Material | Oil, Grease |
| Maximum Operating Temperature (°C) | 176 |
| Type | Divider Valve |
| Divider Valve Series | MSP |
| Application | On-Road Vehicles, Off-Road Equipment, In-Plant Machinery |
| Model | Trabon |
| Series | MSP |
| Discharge Per Piston Stroke (in³) | 0.020 |
