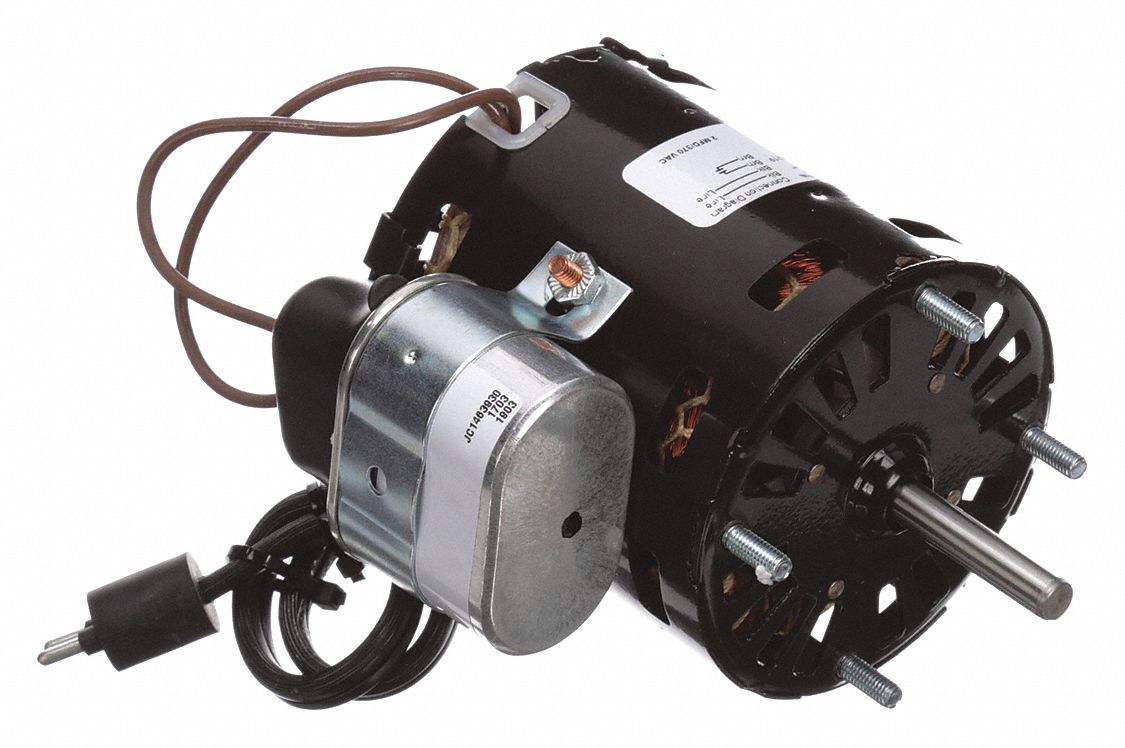

Fasco Heatcraft - D1122

OEM Replacement Brand: Heatcraft; Item: Condenser Fan Motor; Motor Design: Permanent Split Capacitor; Phase: 1; HP: 1/16; No. of Speeds: 1; Voltage: 208-230; Motor Shaft Rotation: CWSE; Frame: Non-Standard; Motor Enclosure Design: Open Air-Over; Motor Mounting Type: Stud; Shaft Dia.: 5/16 in; Shaft Length: 1 5/8 in; Number of Shafts: 1; Motor Thermal Protection: Auto; Nameplate RPM: 1300/1650; Motor Application: OEM Replacement; Motor Sub Application: Condenser Fan; Full Load Amps: 0.4; Hz: 60/50; Ins. Class: B; Max. Ambient Temp.: 40 Degrees C; Motor Service Factor: 1; Motor Bearings: Sleeve; Motor Shaft Design: Flat; Body Dia.: 3 19/64 in; Length Less Shaft: 3 5/8 in; Overall Length: 5 1/4 in; Bolt Circle Dia.: 2 13/16 in; Mounting Stud Pattern: 4 in x 4 in; Stud Size: 10-32 X 1/2 in; Capacitor Required: Included; Replacement For: 25308601; Application: Fans and Blowers
