Description
Description
x

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.

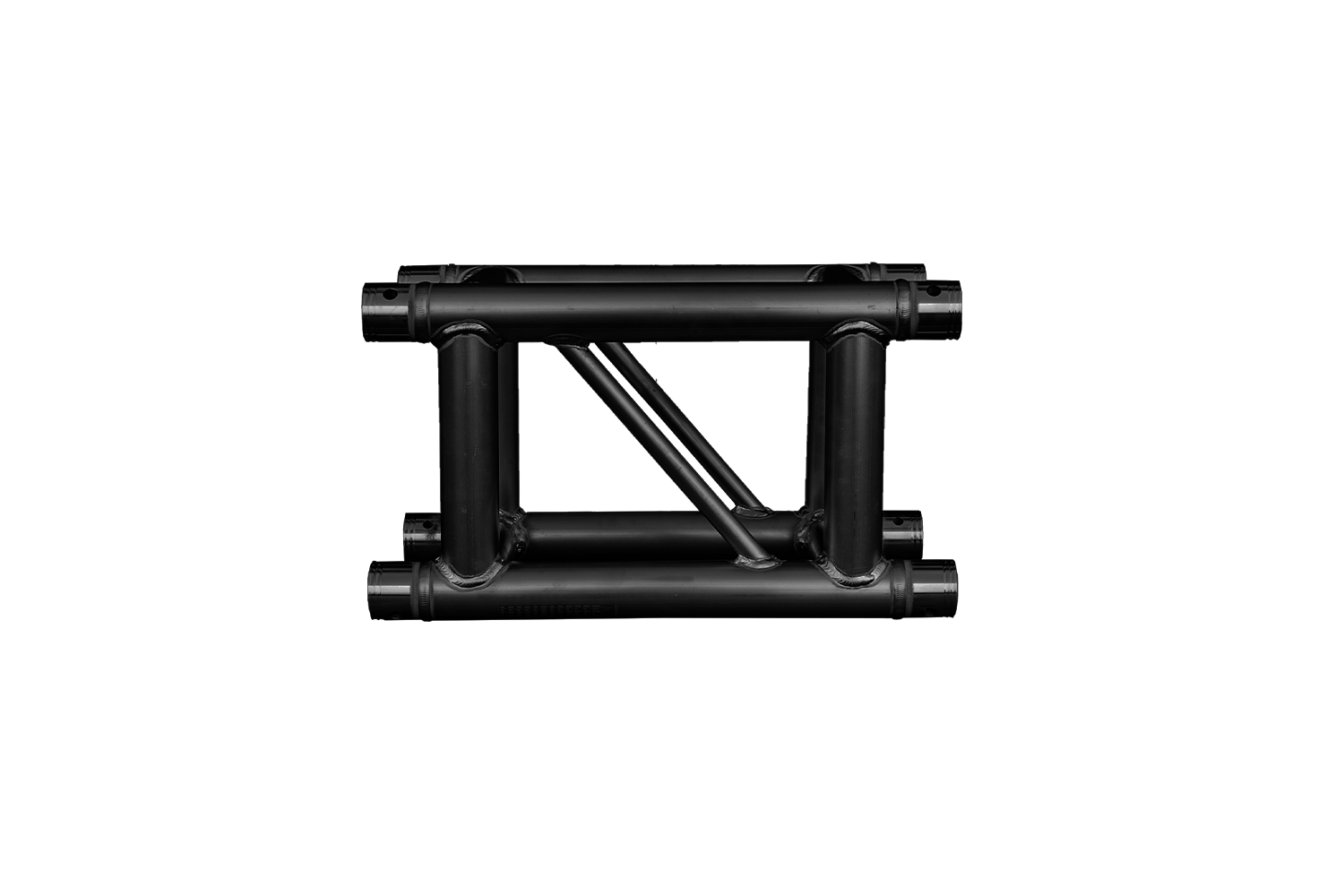

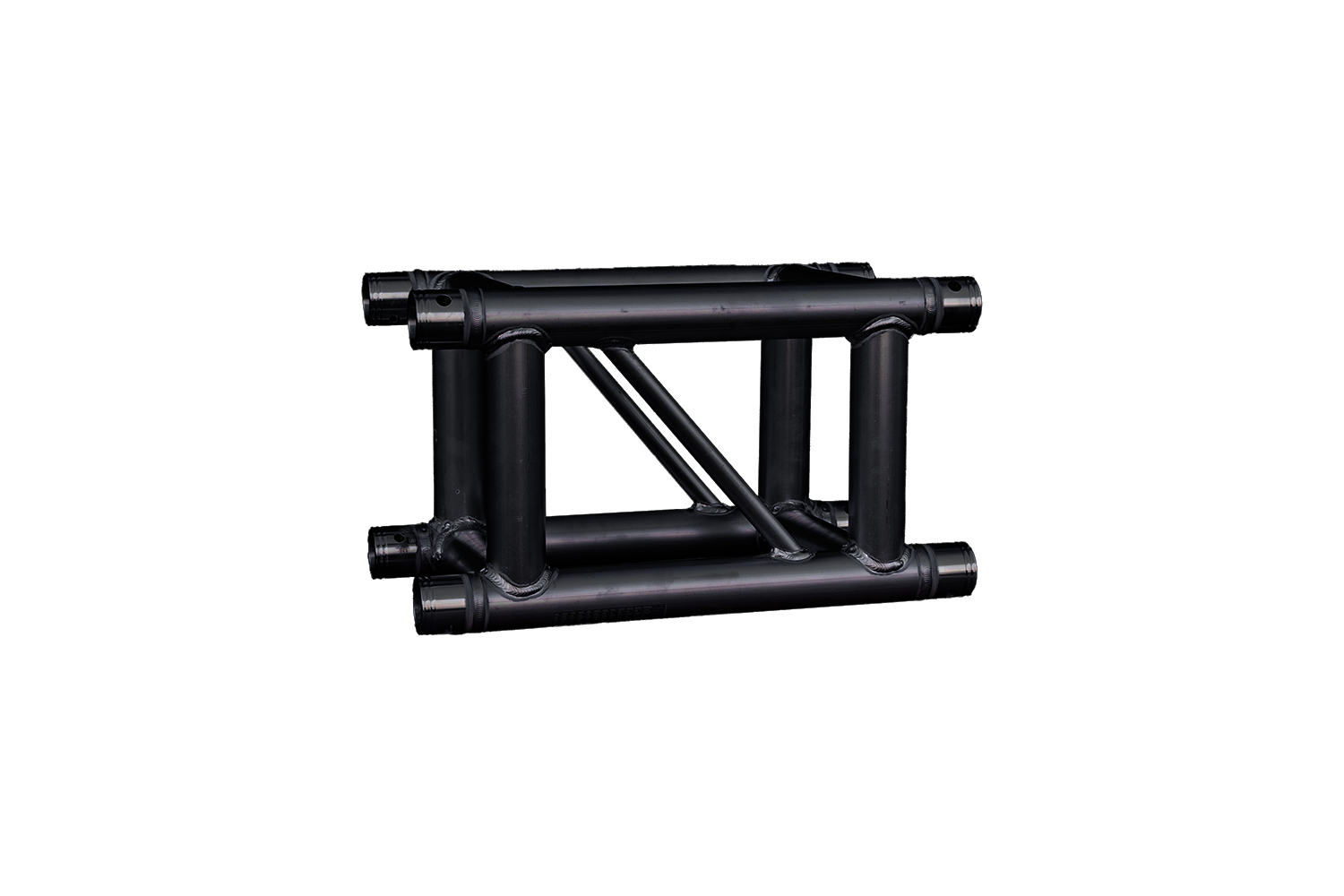

290mm Aluminium Lighting Spigot Box Truss - 0.5m length, 2mm wall thickness

  • Main Tube: 50mm x 2mm
  • Vice Brace: 50mm x 2mm
  • Diagonal Brace: 25mm x 2mm
  • Materials: Aluminium alloy 6061-T6
  • Finishing: Black, powder coated
  • Rating: TUV
  • Dimensions (L x W x H): 290 x 290 x 500mm

Span (m)

Centre Point Load (kg)

 Deflection (mm)

Uniform Load (kg)

Deflection (mm)
2 1311 2 1403 2
3 1000 7 1286 5
4 683 10 1103 11
5 620 18 1000 13
6 478 26 786 18
7 410 39 621 24
8 401 46 605 36
9 300 50 558 45
10 286 59 480 49
11 213 66 423 56
12 207 68 364 68


Please Note: Shipping at checkout for this item may be an estimate only and may apply only to some metro areas or a specific distance from supply location. Please use the contact us form to get an accurate shipping quote based on your order quantity and location.
