Description

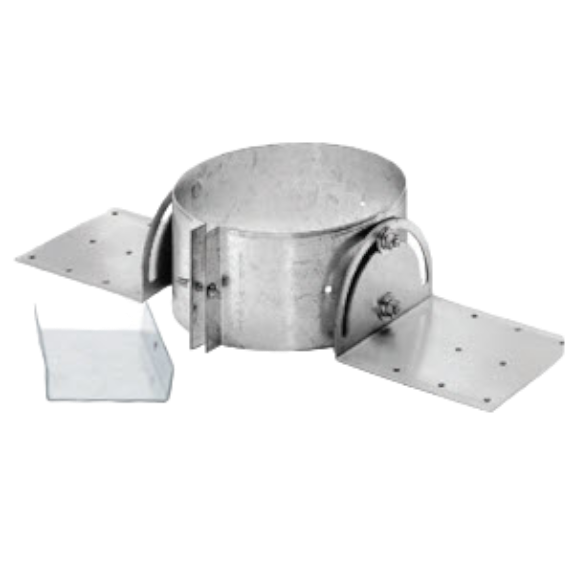

xThe DuraTech Roof Support is used when the pipe is passing through a ceiling and a roof to support the weight of the pipe. Typically used for cathedral ceiling installation it allows the pipe to extend below the ceiling while sitting on the roof joist. The Roof Support has adjustable brackets to accommodate any roof pitch. The Roof Support is generally installed when a ceiling support box is not used.
Capable of supporting up to 45' of DuraTech chimney pipe and is approved to have up to 20' of pipe below the roof support extending down into the home. Trim Collar not included.
Measurement Chart:
DuraTech Class A Roof Support 5" to 8"
| Size | 5" & 7" | 6" & 8" |
| A | 7", 9" | 8", 10" |
