Description

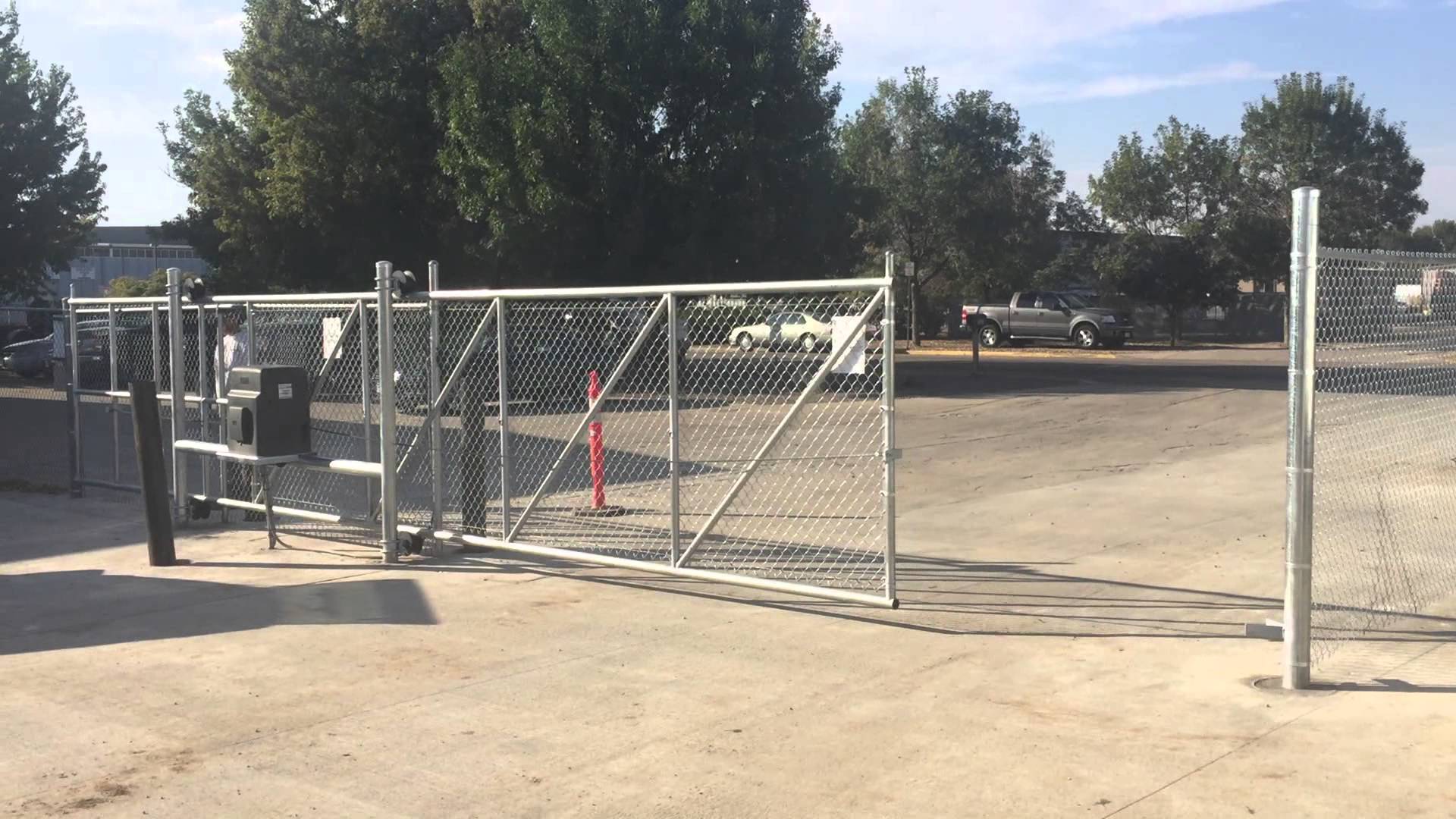

xWith openings ranging from 12’ to 40’ wide, this Galvanized Chain Link Cantilever Gate is wide enough to accommodate most trailers, cars, trucks and vehicles. Made of galvanized chain link, this cantilever gate allows great visibility and is durable and adaptable to many different conditions and climates.
- Galvanized steel
- Rust resistant
- Compatible with automatic openers
Gate's overall length is 1.5 times the opening.
Barb wire adds 1 extra foot to height.
THIS IS JUST THE GATE. HARDWARE AND POSTS SOLD SEPARATELY.
You'll need at minimum 2 pre-cut posts; number of full-length posts (21' or 24') would depend on height of gate and how much length you want to put in the ground (we recommend at least 4-1/2' or more).
Recommended posts based off gate square footage (height ft. x opening ft.):
|
Gate/Leaf square footage |
Post size (O.D.) | 6' tall gates | 7' tall gates | 8' tall gates |
| 1 - 32 sq. ft |
3" |
4076106 (10'6") |
4076130 (13') |
4076090 (21') |
| 32 - 84 sq. ft |
4" |
4099106 (10'6") |
4099130 (13') |
4098210 (21') |
| 84 - 150 sq. ft |
6-5/8" |
4129210 (21') |
4129210 (21') |
4129210 (21') |
| 150+ sq. ft |
8-5/8" |
4139210 (21') |
4139210 (21') |
4139210 (21') |
You'll also need 4 Rollers that mount onto the recommended posts to roll the cantilever on
| Post size (O.D.) | Nylon | Steel |
| 3" | Special Order | 10961 |
| 4" | 10957 | 10960 |
| 6-5/8" | 10959 | 10962 |
| 8-5/8" | Special Order | Special Order |
Nylon rollers are the better of the 2 styles of rollers; cheaper and offer a much smoother operation than the steel!
