Description
xDX200 is designed specifically for finishing applications requiring multi-spray gun usage, or while transferring or circulating up to 5 l/pm of high to low viscosity materials.
- Rugged Construction & Universal Material Compatibility
- Non-Stall & Quiet Running
- Extended Service Life & Zero Leakage
- Consistent Fluid Delivery
- Pumps Shear-Sensitive Materials
- Fast & Easy Servicing

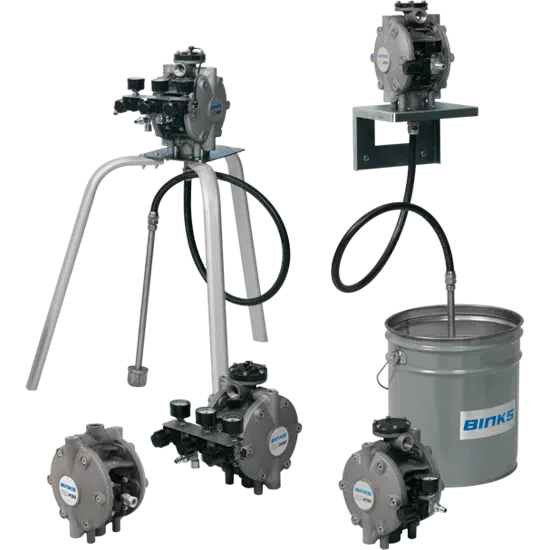

The DX200 is a high flow rate, air operated 1:1 ratio, double diaphragm circulation or transfer pump specifically developed for the direct supply of paints and materials to spray guns.
The pump features a unique “no crease” diaphragm shape for a long and durable
working life. Users can opt for the “built-in” fluid regulator which ensures a constant and virtually pulse free fluid delivery, enabling direct connection to spray guns without the expense and complications of an additional fluid regulator or surge chamber.
The DX200 range features bare pumps and a choice of outfits. DX200 is selfpriming and perfect for use with ALL TYPES of spray gun technologies including, Conventional, Compliant Trans-Tech©, HVLP, LVLP and low pressure Electrostatic guns.
Typical Applications
- Joinery/Furniture & Woodworking
- Aerospace / Aviation
- Agricultural & Off Road Vehicles
- Marine Industry
- Truck/Trailer & Chassis Makers
- Rail, Bus & Transport
- Plus many others...
Suitable For These Materials
- Wood-Stains, Lacquers & Varnishes
- Primers, Sealers & Catalysed Lacquers
- Solvent OR Waterborne Coatings
- Adhesives & Fillers
- Plus many others..
| Pressure ratio | 1:1 |
| Volume per cycle | 0.2 l |
| Max. flow capacity | 12 l/min. |
| Operating pressure max. | 101.53 PSI |
| Material | ST ST (Stainless) |
| Air inlet connection | 1/4˝ Female BSPP/NPSM |
| Fluid Inlet connection | 3/4” Female BSPP |
| Fluid Outlet (pump) connection | 1/2” Female BSPP |
