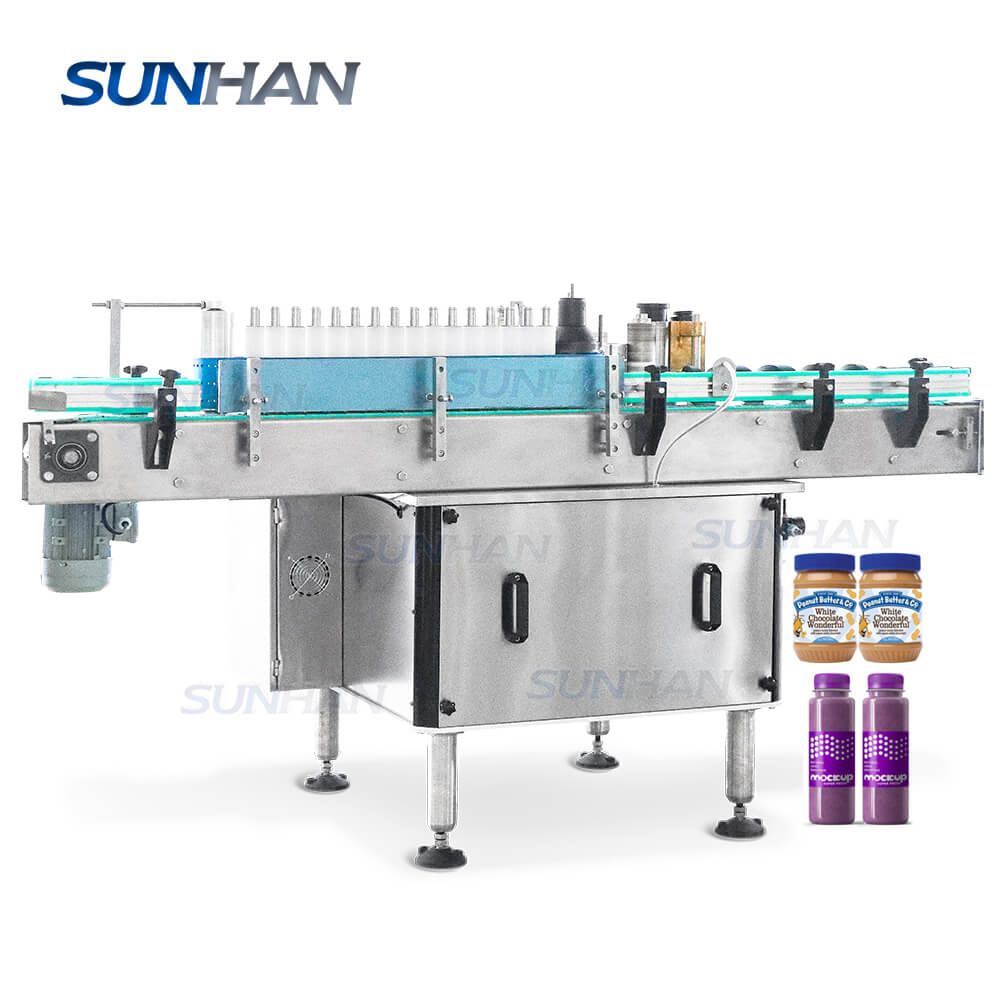

Automatic Round Hot Sauce Bottle Label Applicator Wet Glue Label Pasting Gum Labeling Machine

Description

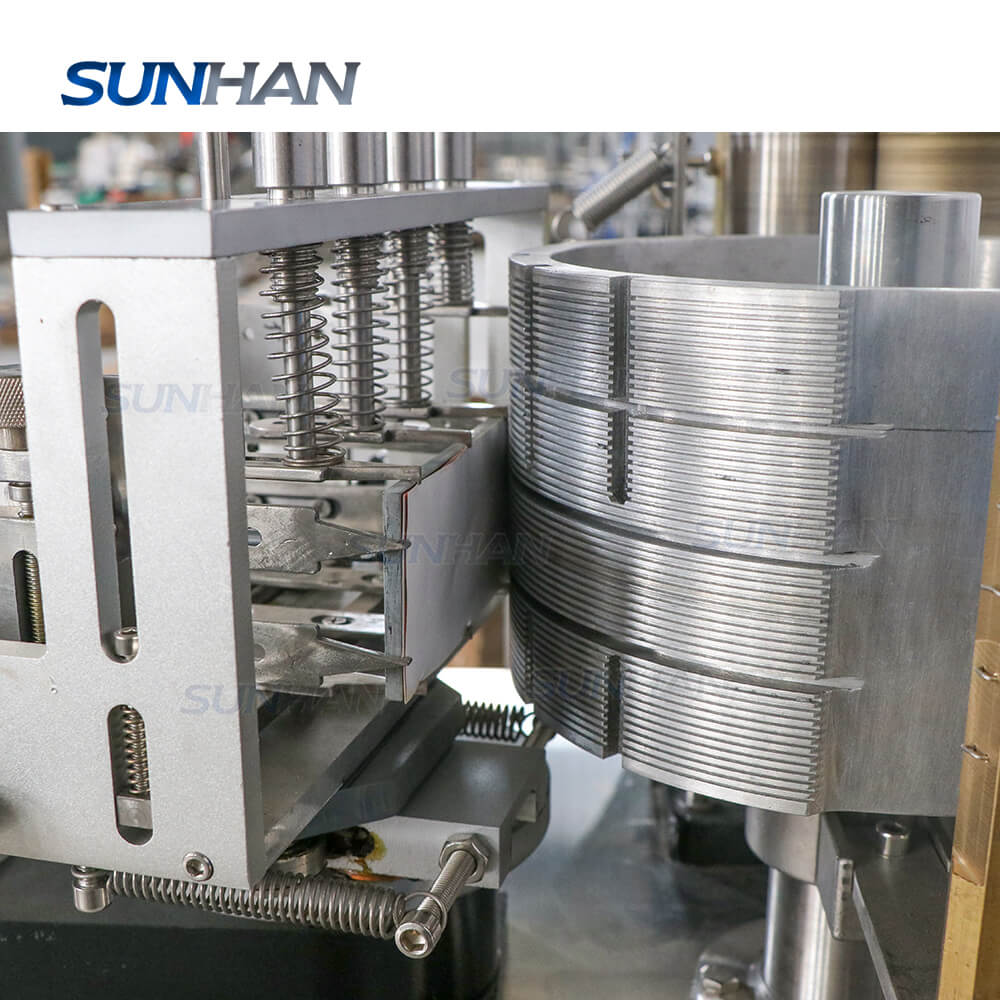

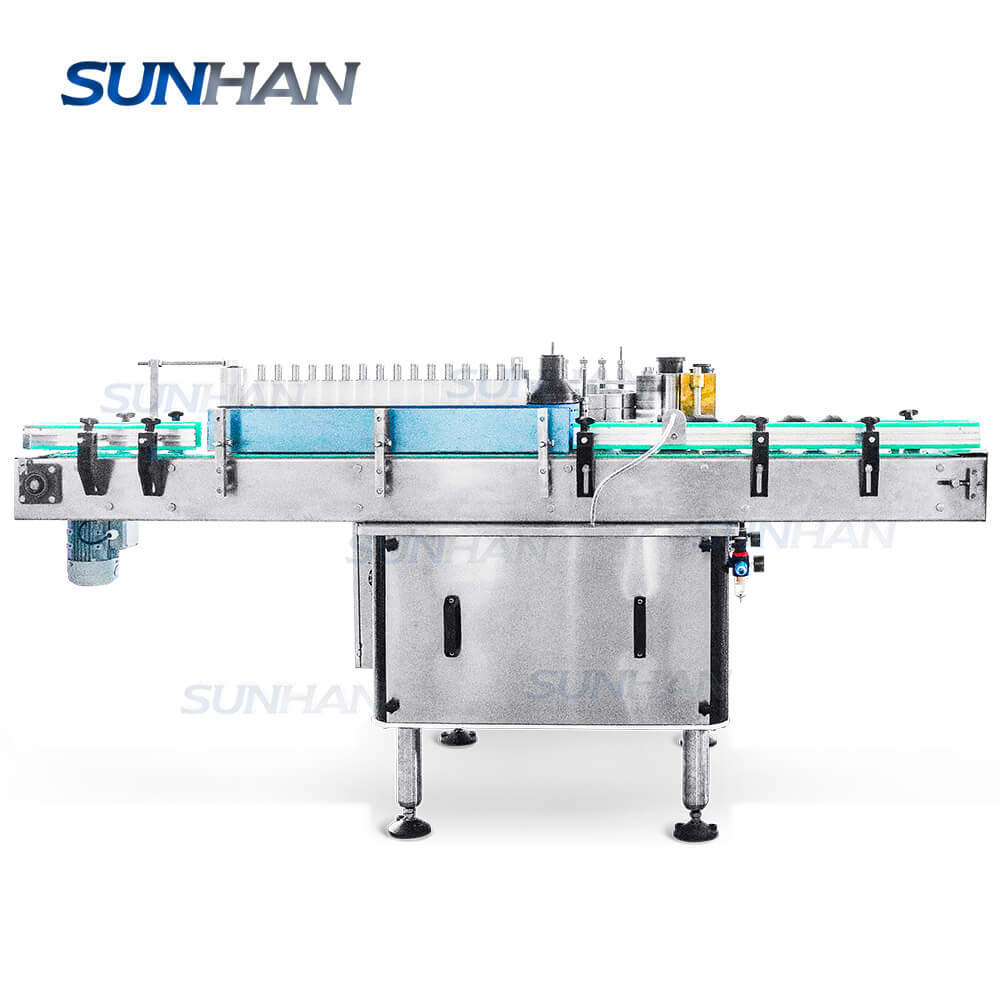

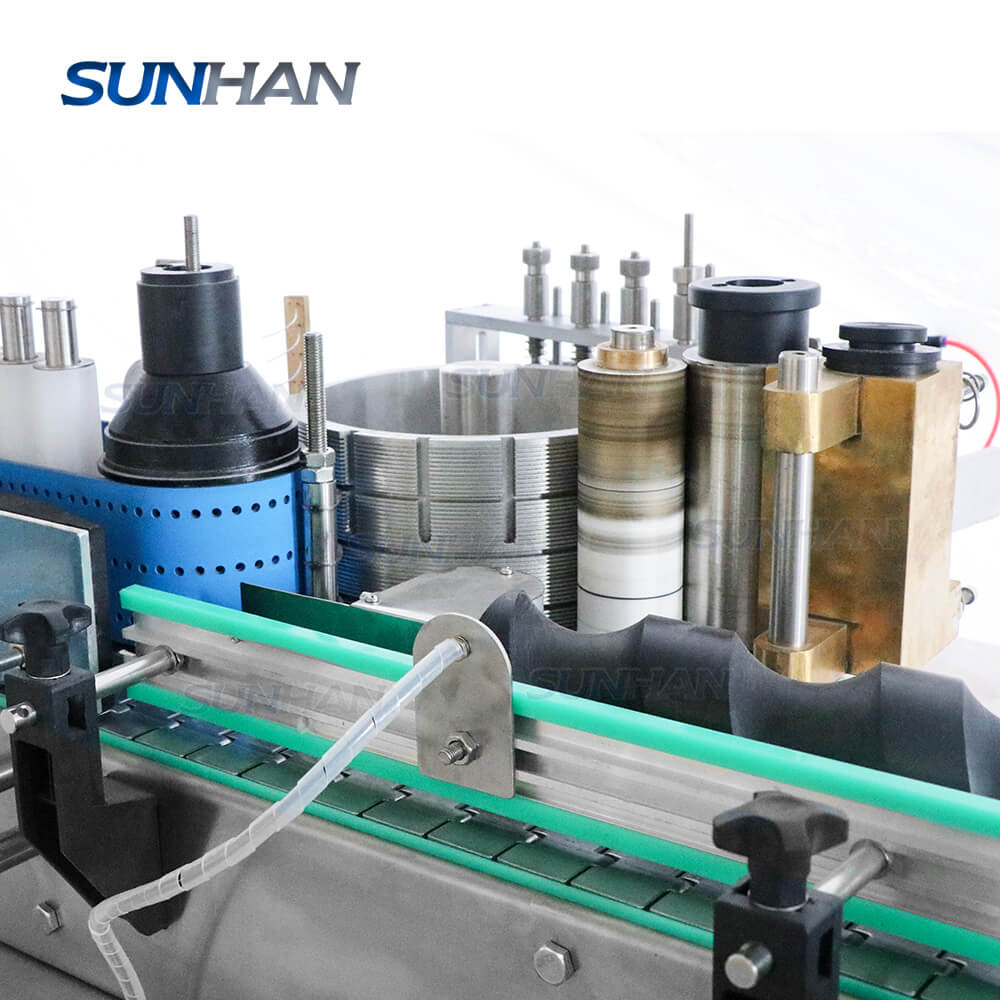

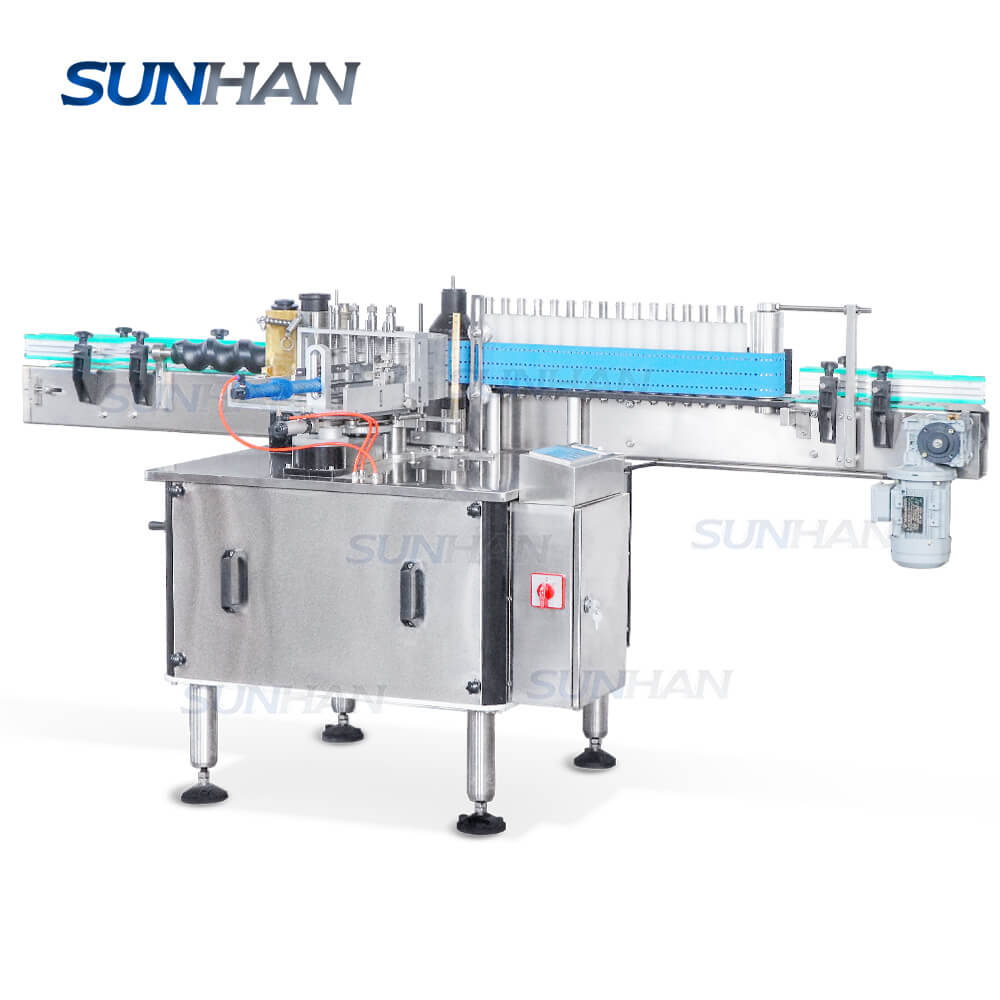

This labeling pasting machine is designed for pasting wet glue labels on round objects like cans, beverage bottle, jam bottles,hot sauce bottles.It is economical and easy to operate. Stable performance, smooth and good labeling effect. When the machine is running, the glue sent from the paste container and the label are firstly pasted by the sticking pole, rotated to the labeling belt, and finally glued around the bottle body.It is widely used in food, daily chemical industries.

Main Feature

▶Cam work with automatic filling & capping machine to realize automated production
▶High labeling accuracy, improves production quality

Parameter

• Machine model:SH-WGTB01

• Power supply:220V/380V 50Hz/60Hz

• Installed power:2KW

• Bottle/can diameter:50-100mm

• Label size:50-30mm*50-140mm(W*H)

• Production speed:1000-4000BPH

• Air consumption:4-6.5m³/min

• Adhesive used: Resin Glue

• Machine size: About 3050*960*1120mm(L*W*H)

• Package size: About 3160*1220*1500mm(L*W*H)

• Package weight: About 480kg
