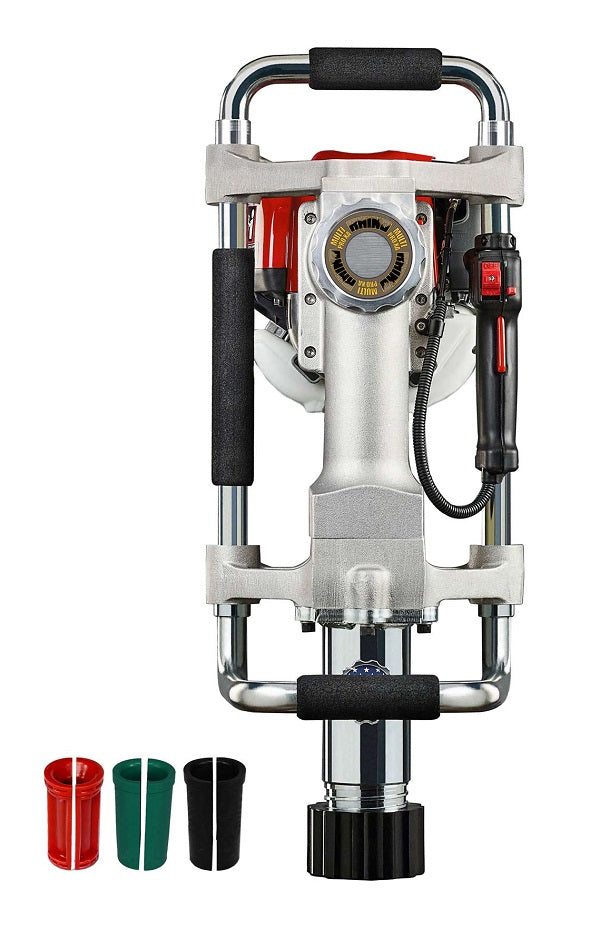

The Multi-Pro™ XA Gas Post Driver is the most versatile driver in the Rhino™ Pro-Series line of gas post drivers. From T-post to large wood posts, the Multi-Pro™ XA can be adapted to handle a wide range of post diameters and materials without needing to change the anvil. Only a chuck change is required depending on the type of post installation.
- Comes standard with Rhino™ Extended Anvil and Longer 2.5” ID Master Chuck
- Includes Rhino™ Chuck-Lok™ 1″, 1-3/4″, 2″ Adapters
- Rhino™ Tension-Grip crankcase cover provides tool-free removal for ease of lubricant application
- Quick change chuck is designed to receive the Chuck-Lok™ Adapter System and be quickly removed when changing accessories
- Two-piece adapter design allows quick removal of driver from the post
- Equipped with Rhino’s CIS™ Vibration Dampening
- Padded grip for handling comfort
- Powered by Honda™ GX35 4-Stroke Engine
- Shock resistant heat-treated steel components
- High-grade virgin aluminum cast body
- Double sided, sealed bearings on all rotating parts
- Removable bottom handle
- Made in the U.S.A.
- Rhino Lifetime Impact Warranty. See warranty statement for details
Specifications:
| Master Chuck ID | 2.5” (63.5mm) |
| Driver Only Dimensions | 11" W x 14" D x 28.5" H (280 x 356 x 724 mm) |
| Driver Only Weight | 47.25 (27.43) |
| Engine | Honda GX35 4-stroke |
| BPM (beats per minute) | 1720 (approximate) |
| Fuel | Unleaded Gas, 86 octane or higher |
| Fuel Capacity | 0.67 qt. (0.63 ltr) |
| Engine Oil | SAE 10W-30 |
| Lubricant | Rhino® Pro Series Lubricant |
| Shipping Weight | 55 lbs. (24.9 kg) |
| Shipping Dimensions | 30.5" L x 15" W x 18.25" H (775 x 381 x 464 mm) |
Application:
| Types & Sizes of Posts (outside dimensions) |
Chuck/Adapter |
|---|---|
| T-Post | 1-3/4” Adapter (Included) |
| Ground Rod, 1/2" & 3/4" | 1” Adapter (Included) |
| Concrete Form Pin, 1" | 1” Adapter (Included) |
| Round Pipe, 1" to 1-5/8" | 1-3/4” Adapter (Included) |
| Round Pipe, 1-3/4" to 1-7/8" | 2” Adapter (Included) |
| Round Pipe, 2" to 2-3/8" | Extended Master Chuck (Included) |
| Tent Stake, 3/4" to 2-1/2" | Tent Stake Chuck (Optional) |
| Square Tube, 1-3/4" to 2-1/2" | Square Anchor Chuck* |
| Channel Post, 1.2 to 4 lbs. | Slotted Chuck (Optional) |
| Silt Fence Post | Slotted Chuck (Optional) |
| Round Solid Wood Post, 3-7/8" | Adapter Plate & 4" Chuck (Optional) |
| Round Solid Wood Post, 2-1/2" to 3-3/8" | Adapter Plate & 3-1/2" Chuck (Optional) |
| Square Solid Wood Post, 2" to 2-7/8" | Adapter Plate & 3" Square Chuck (Optional) |
