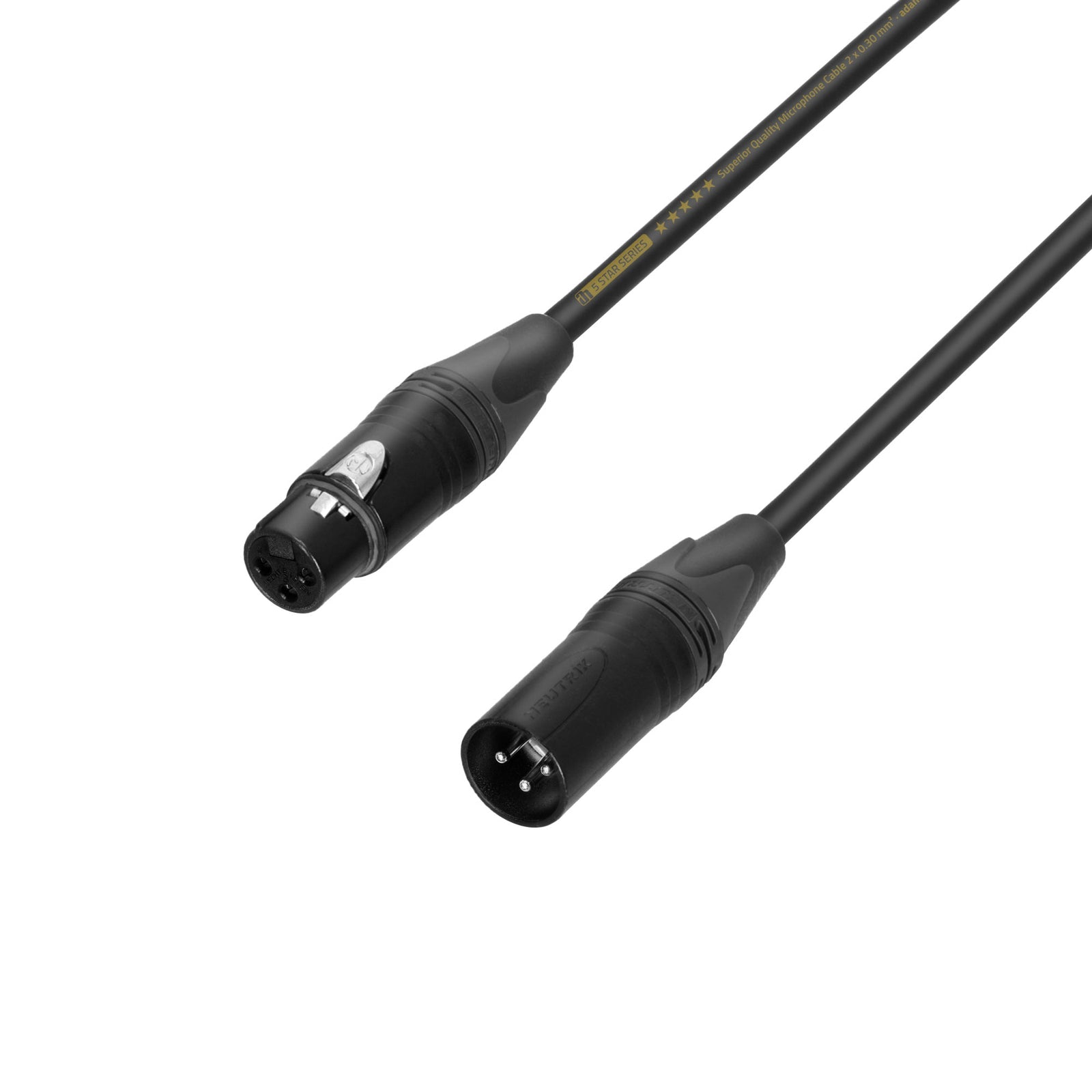

Neutrik XLR kabel (1m)

XLR kabel med Neutrik stik
Professionelt signal mikrofon kabel med Neutrik NC3MXX XLR Han stik til Neutrik NC3FXX XLR Hun stik.

XLR kabel med Neutrik stik

Professionelt

Highly flexible and yet extremely rugged; the multilayer shielding ensure optimal insulation against electrical interference onstage. Equipped with NEUTRIK © XLR plugs on both ends.

Specifikationer for Neutrik XLR kabler:

• Type: Microphone Cable
• Color: black
• Overall diameter: 6.4 mm +/- 0.1 mm
• Conductor area: 0,22 mm²
• AWG (American Wire Gauge): 24
• Conductor material: copper wire screen
• Composition of conductor: 28 x 0,10 mm
• Screen material: bare copper, OFC
• Screen: spiral wound
• Conductor resistance: 87 Ohm / km
• Capacity: < 68 pF/m
• Overall jacket material: PVC

Plugs:

• Model name NC3FXX
• Manufacturer: Neutrik
• Product type: XLR Plug
• Type: straight
• Number of poles: 3
• Gender: female
• Cable diameter: 3.5 - 8 mm
• Colour marking: -
• Contact surface: Silver
• Connection type: Solder contact
• Colour: Black
• Housing: Cast zinc
• Clamping sleeve: POM
• Dimensions (L x Ø ): 71.5 x 19.2 mm

• Model name NC3MXX
• Manufacturer: Neutrik
• Product type: XLR Plug
• Type: straight
• Number of poles: 3
• Gender: male
• Cable diameter: 3.5 - 8 mm
• Colour marking: -
• Contact surface: Silver
• Connection type: Solder contact
• Colour: Black
• Housing: Cast zinc
• Clamping sleeve: POM
• Se også vores DMX kabler til lys
• Dimensions (L x Ø ): 68,1 x 20,4 mm
